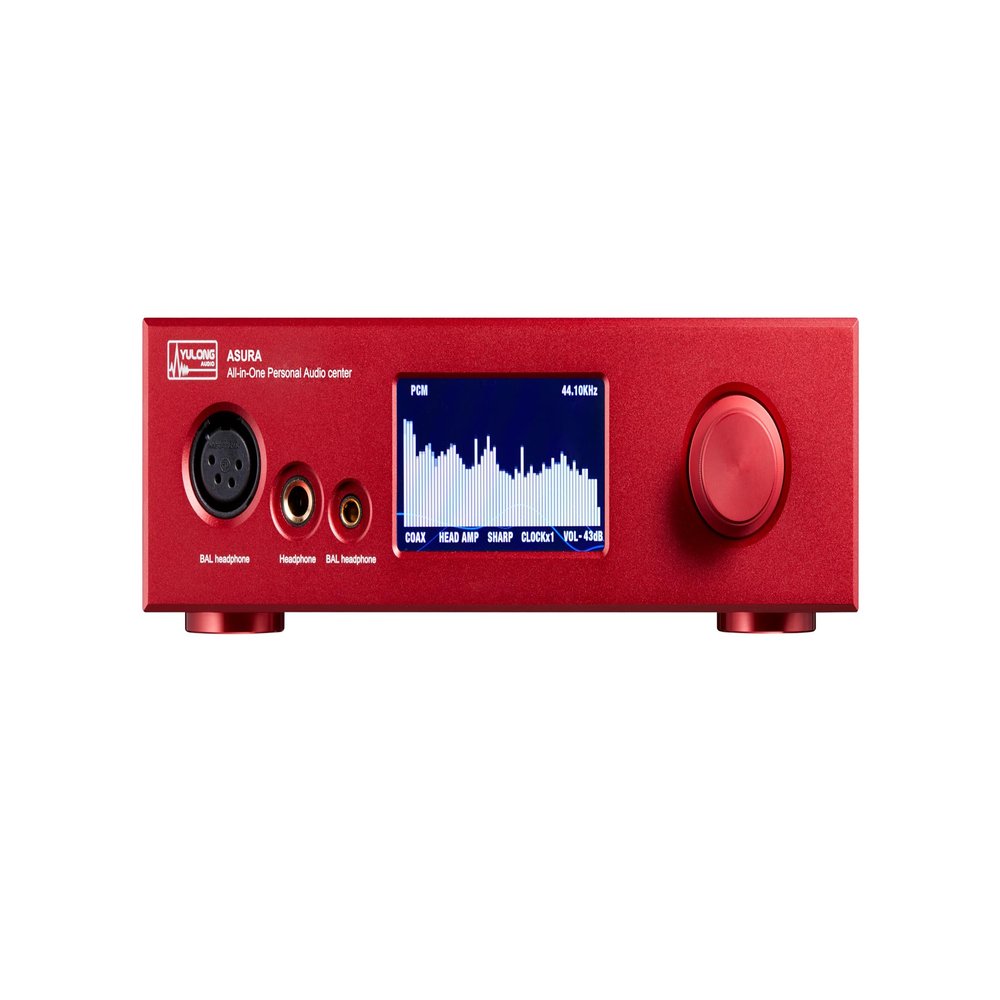

Yulong Asura Network Streaming Player Decoder Headphone Amp with Local Synchronized ClockRed

Description

• Powerful digital processing - the milestone of the sound. The 6th generation of Yulong Jitter and lnterface Control (JIC) a Network streaming, a femto-second clock, USB interface, a SPDIF demodulator, a FIFO buffer and a PLL sychronizer that enables better sound.
• The Asura uses the Slave l2S port of the CPU during internet streaming operations, whereas traditional internet streaming almost exclusively uses the Master 12S port, When using the Master l2S port, the master clock of the audio signal is provided by the internal clock of the CPU. The performance of this clock over streaming is subpar, thus serious leaving performance to be desired. A major advantage of the Slave l2S mode over the Master 12S mode is that it uses a master clock signal generated by the synchronized local low noise audio oscillator assigned by the FPGA phase lock loop, therefore improving the quality and precision of the output signal over network propagation.
• All-in-one solution. Optimizes and simplifies audio signal chain and streamlines interconnectors.
• Pure Network streaming DAC. In this mode, the headphone amplifier and volume control are disabled and the least processed signal from the DAC is extracted to allow you to pair with equipment of your choice.
• Network streaming plaver decoder headphone amp. Latest architecture from Yulong allows an output up to 5 Watts of power that can handle low or high impedance headphones effortlessly.

Technical Specificaiton:
Digital Audio:
NET, Optical: PCM: up to 24Bit/192kHz
DSD: DoP64
USB: PCM: up to 32Bit/1536kHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024
Coaxial: PCM: up to 24Bit/384kHz
DSD: DoP64 and DoP128

Head Amp:
Power Rating* 32 64 150 300 600
Single-ended 1500mW 630mW 300mW 140mW 90mW
Balanced 5000mW 2500mW 1100mW 540mW 280mW
Freq. Response20-30KHz0.15dB
THD+N0.001%
Output lmpedance20

DAC
Output LevelSingle-ended (RCA)3V
Balanced (XLR) 6V
Freq. Response20-30KHz0.15dB
THD+N0.0001%
Dynamic Range125dB
SNR125dB
Crosstalk<-120dB
Output Impedance<20
Power consumption<30W
Dimension248mm x210mm x 60mm(LxDxH)
Weight4Kg
