Primeda-telecom VGA Over Fiber Media Converter Adapter with KVM and Independent Stereo 3.5mm Audio Singlemode Single Fiber up to 20Km Multimode 500m A Set

Description

• VGA over Fiber- Extend 1080P VGA a/v signal through a Fiber Optic cable to remote transmission, Up to 20Km(12.4miles) by single-mode single fiber cable, up to 500meter (1640ft.) by a multimode single fiber
• Up to 1920x1080P@60Hz Support video resolution up to 1920x1080P@60Hz, compatible backwards with lower resolution
• MultifunctionalSupport KVM function which is controlled VGA signal remotely by a Keyboard and a mouse , it is with additional independent stereo 3.5mm mini jack audio, the 3.5mm audio also can be transmitted synchronously by same fiber to remote end. use for phone/MP3/4/any audio devices with 3.5mm ports
• LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system
• High quality vga extenders over fiber, Long working life, Mean Time Between Failure (MTBF): 100,000 hours
• Plug and Play, No need to set up. Easy to operate

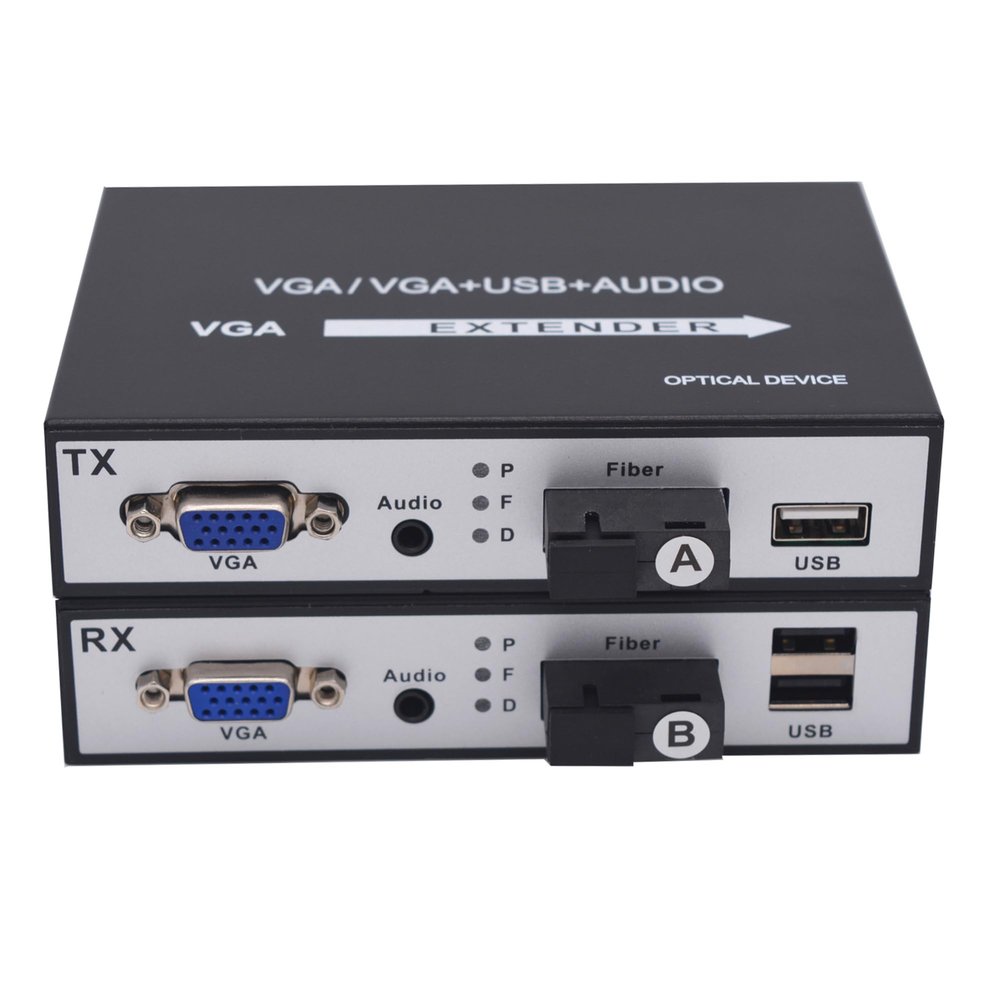

LEDs Indicator description:
1.P:power light, constant on after power on.
2.F: fiber light, constant on once fiber established. if fiber not established, fiber light off.
3.D: data light, constant on once connected VGA device, light flashing upon signal outputted

Interface description:
1.VGA: 15Pin female. Transmitter connected to the computer, receiver connected to the display.
2.Audio: independent stereo 3.5mm mini jack audio.
3.Fiber: SC fiber interface, connect between transmitter and receiver.
4.KVM (USB on TX): connect to PC. USB on RX: connect to keyboard and mouse for remote control.
5.RESET reset button, which can adjust the resolution of the screen accordingly.
6.DC-5V power adapter that allows voltages up to 5V.

General Index:
1.Product dimension: 125x90x25mm (LxWxH).
2.Working voltage: AC100-240V,DC5V2A, with US power supply plug.

Working environment:
1.Working temperature: -20 -50
2.Humidity range: 0-95%,
3.Storage temperature: -40 -80

Package include.
1x VGA fiber transmitter
1x VGA fiber receiver
1 x FREE 3M LC-LC fiber patch cord
2 x External power adapters.
1 x Manual.
