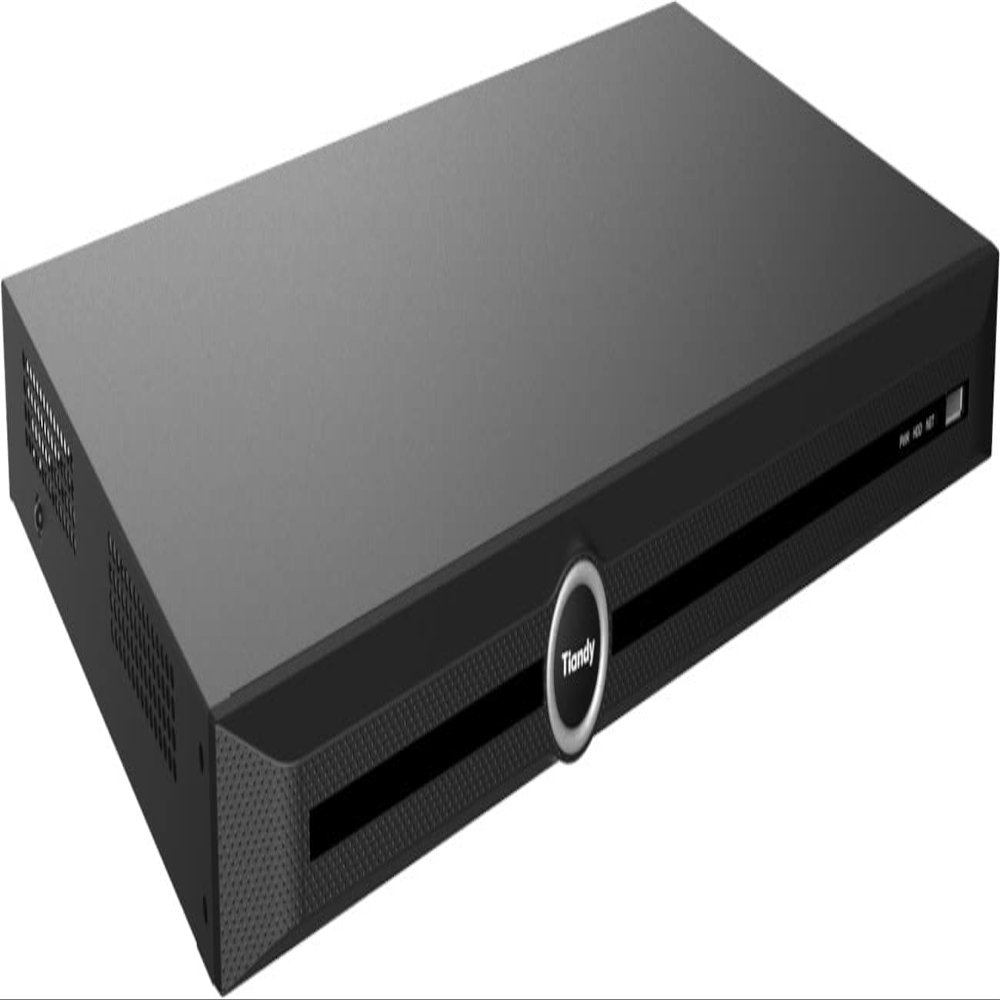

Tiandy TC-R3220 Spec: I/B/P16/K/V3.0 20-Channel PSE NVR, HDDs Not Included, Up to 20-Channel Input, 16 PoE Ports, Up to 8MP Resolution Recording, 2 SATA Interfaces, HDMI Video Output at up to 4K

Description

• HDDs Not Included
• Connectable to the third-party network cameras
• Up to 20-channel input
• 16 PoE ports
• Supports live view, storage, and playback of the connected camera at up to 8MP resolution
• HDMI Video output at up to 4K (3840 x 2160) resolution

Tiandy TC-R3220 Spec: I/B/P16/K/V3.0 20-channel PSE NVR, HDDs Not Included, Up to 20-Channel Input, 16 PoE Ports, Up to 8MP Resolution Recording, 2 SATA Interfaces, HDMI Video Output at up to 4K

Key Features:
- HDDs Not Included
- Connectable to the third-party network cameras
- Up to 20-channel input
- 16 PoE ports
- Supports live view, storage, and playback of the connected camera at up to 8MP resolution
- 1xHDMI and 1xVGA simultaneous outputs
- HDMI Video output at up to 4K (3840 x 2160) resolution
- 2 SATA interfaces, up to 10TB for each HDD
- VCA detection alarm is supported
- Support 250m long-distance transmission

Specifications:

Input:
- Video Input: 20-ch
- Max Resolution: 8MP
- Two-way Audio Input: 1-ch, 3.5mm
- Bandwidth: Income 120Mbps; Outgoing 100Mbps

Output:
- HDMI/VGA Output: HDMI 1-ch, 3840x2160, 2560x1600, 2560x1440, 1920x1080, 1280x720, 800 x600, 1024x768, 1366x768, 1440x900, 1280x800; VGA 1-ch, 1920x1080, 1280x720, 800x600, 1024x768, 1366x768, 1440x900, 1280x800
- Screen Split: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B
- Audio Output: 1xRCA

Decoding:
- Decoding Format: S+265/H.265/H.264
- Recording Resolution: 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Preview Capability: 1x8MP, 1x6MP, 1x5MP, 2x4MP, 4x1080P, 8x720P, 20x4CIF

Hard Disk:
- SATA: 2 SATA interfaces for 2 HDDs
- Capacity: Up to 10TB for each HDD

External Interface:
- Network Interface: 1xRJ45 self-adaptive 10/100/1000 Mbps network interface
- USB Interface: 2xUSB 2.0

PoE:
- PoE Interface: 16xRJ45 self-adaptive 10/100 Mbps network interface

General:
- Power Supply: 100~240V AC, 50~60 Hz
- Chassis: 1U
- Dimensions: 1.87 x 10.91 x 17.32 inches
- Weight (without HDD): 6.72 pounds
