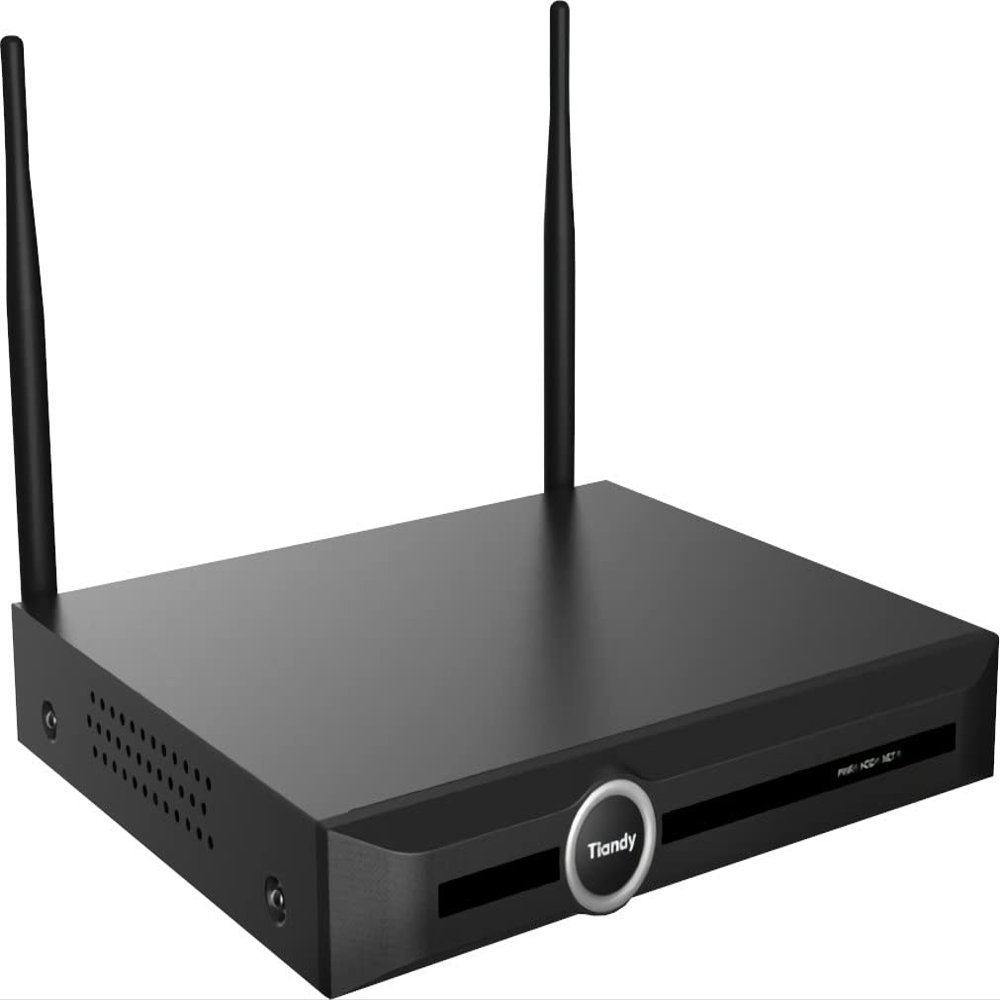

Tiandy TC-R3105 Spec: I/B/W Lite-N Series 5-Channel Wi-Fi NVR, HDD Not Included, HDMI and VGA Simultaneous Support, HDMI Output up to 2560x1440 Resolution, 1 SATA Interface

Description

Tiandy TC-R3105 Spec: I/B/W Lite-N Series 5-Channel Wi-Fi NVR, HDD Not Included, HDMI and VGA Simultaneous Support, HDMI Output up to 2560x1440 Resolution, 1 SATA Interface

Key features:
- HDD Not Included
- Support live view, storage, and playback of the connected camera at up to 6MP resolution
- HDMI and VGA simultaneous output
- HDMI video output at up to 2560x1440 resolution
- 1 SATA interface, up to 10TB for 1 HDD
- Support Wi-Fi matching of Tiandy Wi-Fi IP cameras
- VCA detection alarm is supported
- Support cloud upgrade

Specifications:

Input:
- Video input: 5-ch
- Max resolution: 6MP
- Bandwidth: income 50Mbps; Outgoing 40Mbps

Output:
- HDMI/VGA output: HDMI 1-ch, 2560x1440, 1920x1080, 1280x720, 800x600, 1024x768, 1366x768, 1440x900, 1280x800; VGA 1-ch, 1920x1080, 1280x720, 800x600, 1024x768, 1366x768, 1440x900, 1280x800
- Screen split: 1/3/4/5/6
- Audio output: 1xRCA

Decoding:
- Decoding format: S+265/H.265/H.264
- Recording resolution: 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Preview capability:1x6MP, 1x5MP, 1x4MP, 1x3MP, 4x1080P, 5x720P, 5x4CIF

Hard disk:
- SATA: 1 SATA interface for 1 HDD
- Capacity: Up to 10TB for each HDD

Wi-Fi:
- Wireless standards: IEEE802.11b/g/n
- Channel bandwidth: 20/40MHz
- Wireless range: Up to 50 m (the performance varies based on actual environment)

External interface:
- Network interface: 1xRJ45 self-adaptive 10/100 Mbps network interface
- USB interface: 2xUSB 2.0

General:
- Language: Traditional Chinese, english
- Power supply: DC12V 3.33A
- Chassis: 1U
- Dimensions: 1.77" x 10.04" x 9.84"
