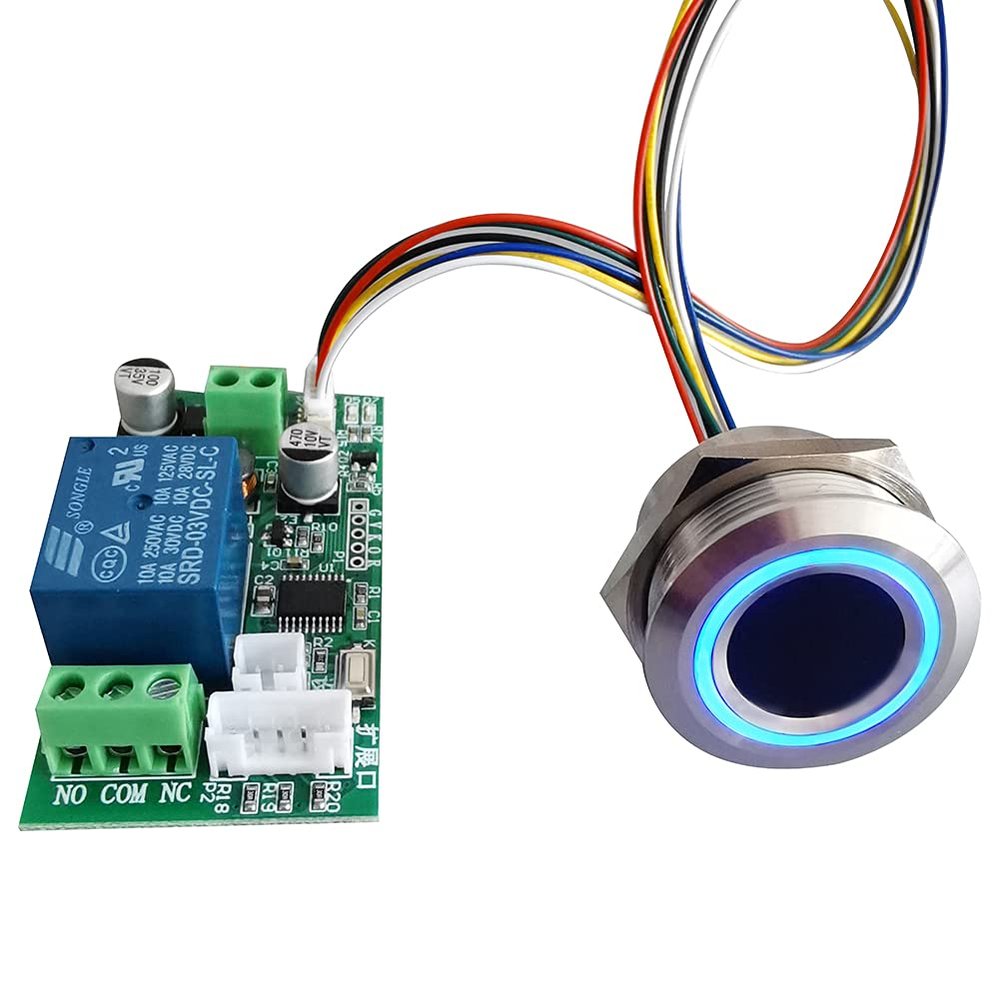

Taidacent Fingerprint Recognition Module Waterproof Identification Fingerprint Control Car Door Lock Relay 485 MODBUS (Control Board with Box, Fingerprint with Cover)

Description

• 1. Control board wide voltage input, DC7V-DC30V are compatible (+ is positive,-is negative); the length, width and height of the bare control board is 56*30*19mm. The length, width and height of the matching control panel box are 60*40*25mm respectively.
• 2. Suitable for DIY users to modify, used in access control, automobile control, electrical control, industrial control and other occasions.
• 3. You can delete all ordinary user fingerprints or ordinary user fingerprints with a designated number; you can also restore the factory settings of fingerprints with one key.
• 4. You can freely choose the relay self-locking mode, jog mode, and ignition mode. In jog mode, the time of relay control can be adjusted freely.
• 5. The recorded fingerprint information and the set jog time, relay mode, etc. will not be lost after power off.

Metal fingerprint
The metal head fingerprint is made of stainless steel and is fixed by a nut. The installation hole diameter is 25mm and the thread length is 19mm, which is very convenient for users to install. Metal head fingerprints have the ability of self-learning fingerprint patterns and can memorize user fingerprint characteristics. Fingerprints will become easier to use and more sensitive.
Ordinary waterproof metal nut fingerprints are equipped with a 50-capacity fingerprint head, and a high-resolution 160*160 fingerprint sensor is used for good recognition.

High-grade waterproof metal fingerprint
The high-grade waterproof metal nut fingerprint is equipped with a 300-capacity fingerprint head as standard, and adopts a Swedish FPC biocapacitive high-resolution 192*192 fingerprint sensor, which has a better recognition effect and effectively eliminates fake fingerprints.
The fingerprint module is equipped with a 500mm cable as standard,
Note: The default shipping accessories do not provide one-key unlocking terminal wire.
If your host computer is a PLC or industrial control touch screen device, you need to use Modbus RTU communication, you need to take another TTL to 485 communication module, otherwise 485 communication will not be possible.

Basic operation
1. Press the button to restore factory settings:
When the board is powered on, keep pressing the "setting key" for more than 10s, the red indicator light on the circuit board lights up and the fingerprint module starts to light up in white. At this time, release the "setting key" and fingerprint If the green light is always on for 1s, it means the deletion is successful; if the fingerprint is always on for 1s, it means the deletion has failed. After restoring the factory state, the system will clear all fingerprint libraries. At this time, the system is in demonstration mode, and any fingerprint can control the relay to open.
