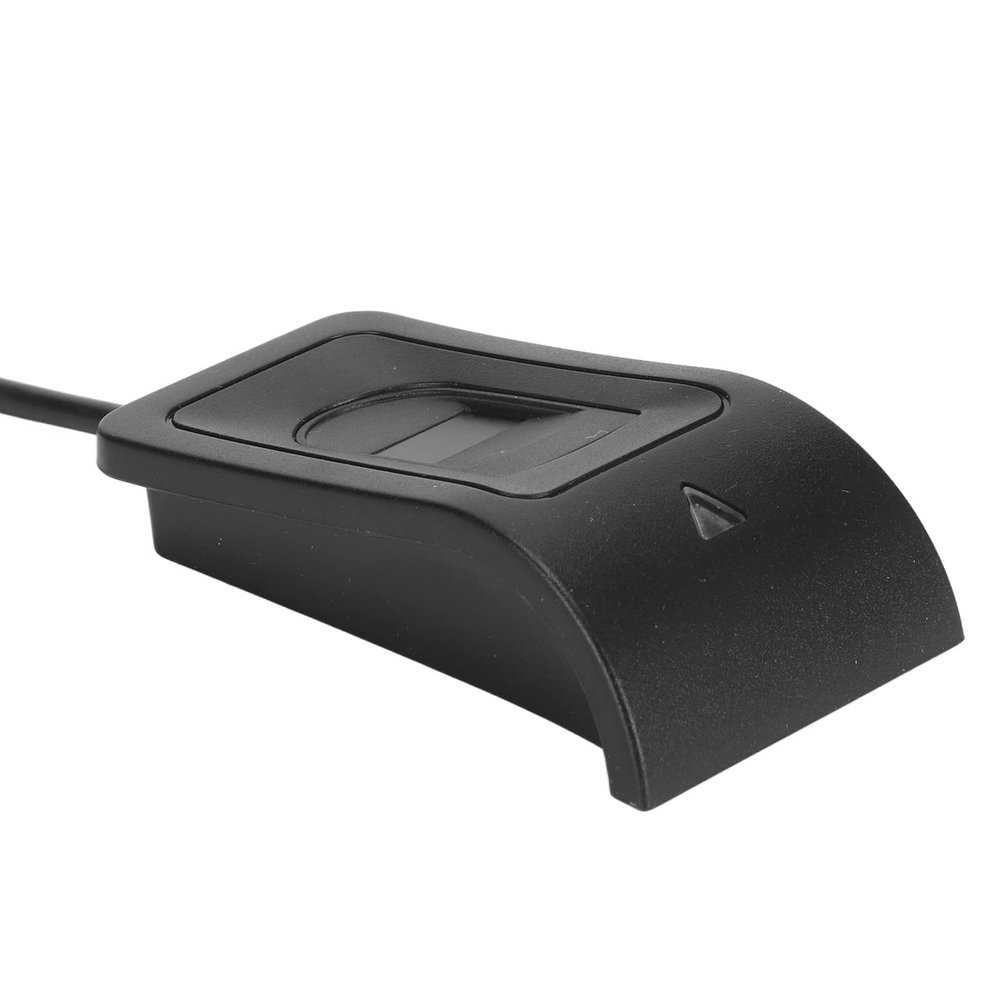

Sonew Fingerprint Key Reader, Computer Fingerprint Reader, Desktop USB Fingerprint Key Reader, Compact Structure Auto Calibration Recognition, USB Fingerprint Reader

Description

• HOLDS MANY FINGERPRINTS: The fingerprint scanner can hold up to 1,000 fingerprints in a lightweight design, set up fingerprints for multiple accounts, set up fingerprints for each family member using separate accounts, and automatically log in to their own accounts with their fingerprints
• 360 DEGREE AUTO CALIBRATION: 360 degree auto-calibration and recognition feature allows comparison by pressing the correctly enrolled finger at any angle on the module, combining superior biometric performance and 360 degree readability with anti-spoofing technology
• VERSATILITY: Multi-functional design allows for independent fingerprint capture, fingerprint enrollment, fingerprint matching and fingerprint . USB cable provides flexibility and can be placed on a desktop or almost anywhere nearby
• WIDE RANGE OF APPLICATIONS: Mini fingerprint reader for fingerprint access control machine, fingerprint rooting, fingerprint attendance machine, fingerprint storage cabinet, one-touch automatic operation, fingerprint printing, fingerprint lock, fingerprint security, superior 3D touch capacitive technology's provide you with high definition fingerprint imaging
• COMPACT STRUCTURE: Computer fingerprint reader is compact, easy to carry and store, low power consumption, universal interface, high reliability, easy to operate, can be simple and convenient for you to manage login and online password

Specification:
Item Type: Fingerprint Key Reader
Material: ABS
CPU: 144Hz main frequency, 1M Bits Flash Memory, 128KB
Fingerprint Capture: Capacitive capture
Fingerprint Image Size: 192 x 192 (pixel), 508 DPI
Fingerprint Registration Capacity: 1000 by default, expandable to 5000
False Acceptance Rate (FAR): Rejection Rate (FRR): Matching Method: 1:N and 1:1 matching
Fingerprint Template Size: 570 bytes Byte
Security Level Setting: Level 1 to Level 5 configurable, factory set value: Level 3
Processing Speed:
Fingerprint Feature Extraction Time 1:N matching time (for 3000 full registrations) Communication Interface: UART, 3.3V-TTL level or USB communication
Serial Communication Parameters:
No Parity Parity = NONE, 1 stop bit Stop Bit = 1
No Control = NONE
Baud rate of 9600, 19200, 38400, 57600, 115200 (bps)
Factory Setting: 115200bps
Operating Voltage: vin voltage: DC3.3V10%
Operating Current: less than 30mA, peak less than 80mA (instantaneous current) when collecting fingerprints
Sleeping Current: less than 10uA working environment
Operating Temperature: -10-60

Package List:
1 x Fingerprint Key Reader
