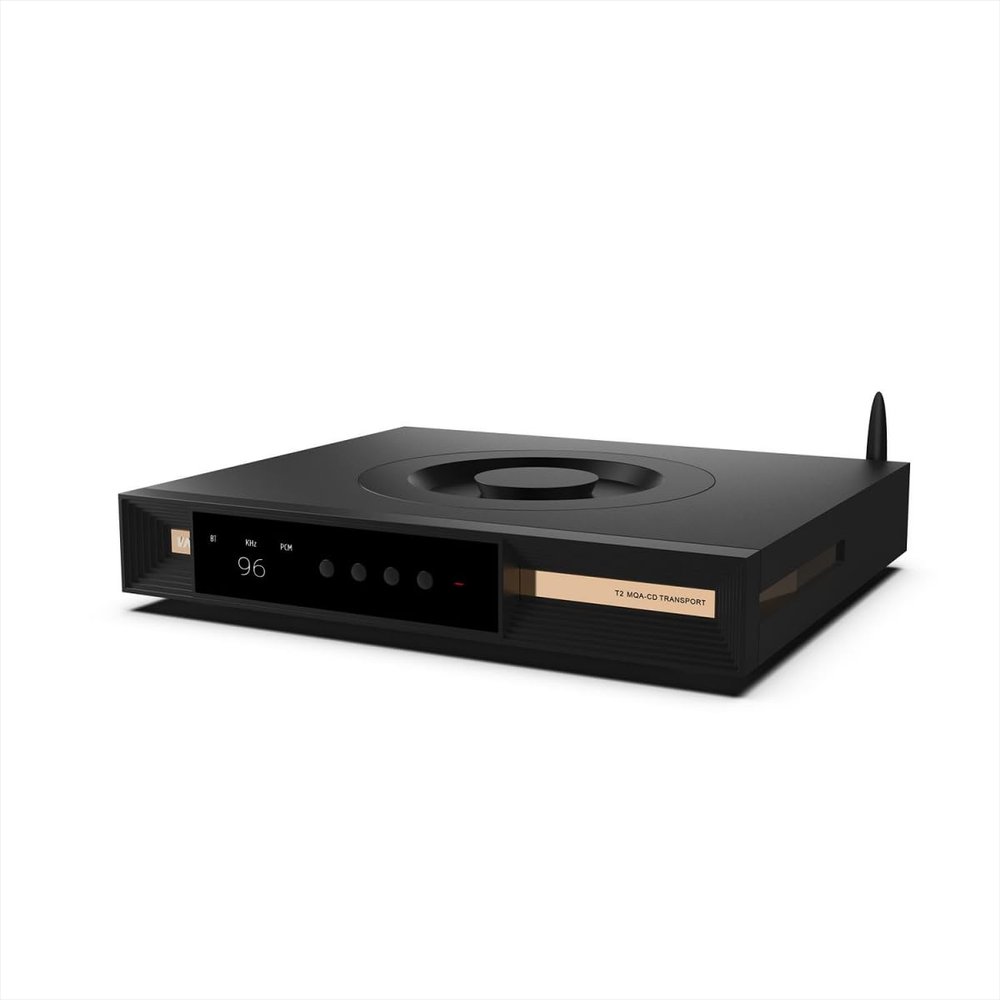

SMSL VMV T2 MQA-CD Transport, Hi-Res Digital Media Center, MQA Full Decoding, 32bit/768kHz DSD512 USB/CD Player/AES/EBU/Clock Input Optical/Coaxial/AES/EBUx2/I2S/Clock Output

Description

• Precision Access Servo System: The servo system researched by SMSL over two years with the characteristics of quick response, precise reading, etc., together with the self-developed vibration stopping dampers, has very good anti-vibration performance
• Clock Input and Output: Clock input and output, support 44.1kHz word clock and10MHZ standard clock or atomic clock, can be 50 or 75 input impedance matching
• Support for MQA Full Expansion: USB supports up to 32bit/768kHz, DSD512, MQA full decoding; AES/EBU input supports MQA full decoding; making it possible to use it as a stand-alone MQA decoder
• Digital Signal Clock Re-lay: The use of internal or external precision clock signals, the input audio signal to achieve re-lay, significantly reducing digital distortion
• Pursuit of Excellence: The VMV T2 also has a unique open-cover playback mode. Equipped with an all-aluminum Remote and full-functionality controls

Inputs: USB/ CD player/ AES/ EBU
Outputs: Coaxial/ Optical/ AES/ EBU x2/ I2S
USB Transmission Method: USB 2.0 Asynchronous Transmission
USB Compatibility: Windows 7/ 8/ 8.1/ 10/ 11(driver required); Mac OSX 10.6 or higher, Android, iOS, Linux (no driver required)
Maximum Output: I2S Output; PCM: 44.1~768kHz; DSD: 2.8224~22.5792MHz
Sample Rate: Optical,Coaxial,AES/EBU: PCM 24bit/192kHz
MQA 8x expansion up to 384 kHz(SPDIF limited to 192 kHz)

Clock Interface: Frequency 44.1kHz or 10MHz
Clock Input:
lmpedance: 50 or 75(optional)
Waveform: Square wave or sine wave
Level: Square wave TTL level, positive level >1Vrms

Clock Output:
Frequency: 44.1 kHz or 48 kHz(automatically switches based on playback file)
lmpedance: 75
Level: TTL level
Power Consumption: 15W
Standby Power Consumption: <0.5W
Dimensions: 280x51x236mm(WxHxD)
Weight: 3.52kg/7.76lbs

Accessories:
1*USB cable
1*Power cord
1*Remote control
1*User manual
