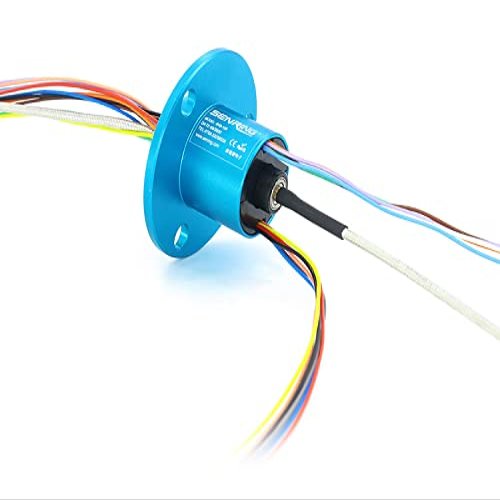

SENRING Slip Ring Factory Outlets 1080P HD-SDI Rotary Joint with 12 Wires 2A for Vedio Signal Transmitting

Description

• OD:22mm, Length:25.5mm, Wire Length 250mm, Max Rotating Speed:50RPM
• 1 Channel 1080P HD Vedio Signal,Frequency rate DC-3GHz,Connector
• Insertion Loss 0.65dB/1GHz Max; Return Loss -18 dB/1GHz Max,VSWR 1.3
• 12 Circuits 2A For Power Or Signal;Electrical Noise < 10m
• Excellent Signal Transmission and Rotation Performance

SENRINGSENRING O022-12 seires HD video slip ring can be combined to transmit HF signal, control signal, video signal and other signals
1 HD Channel: 1 channel
2 Frequency: DC~18GHz
3 Low insertion loss and voltage standing wave ratio
4 Transmit signal and power from stato to rotor stably during 360 continuous rotation
5 Integrated structure, easy installation.
