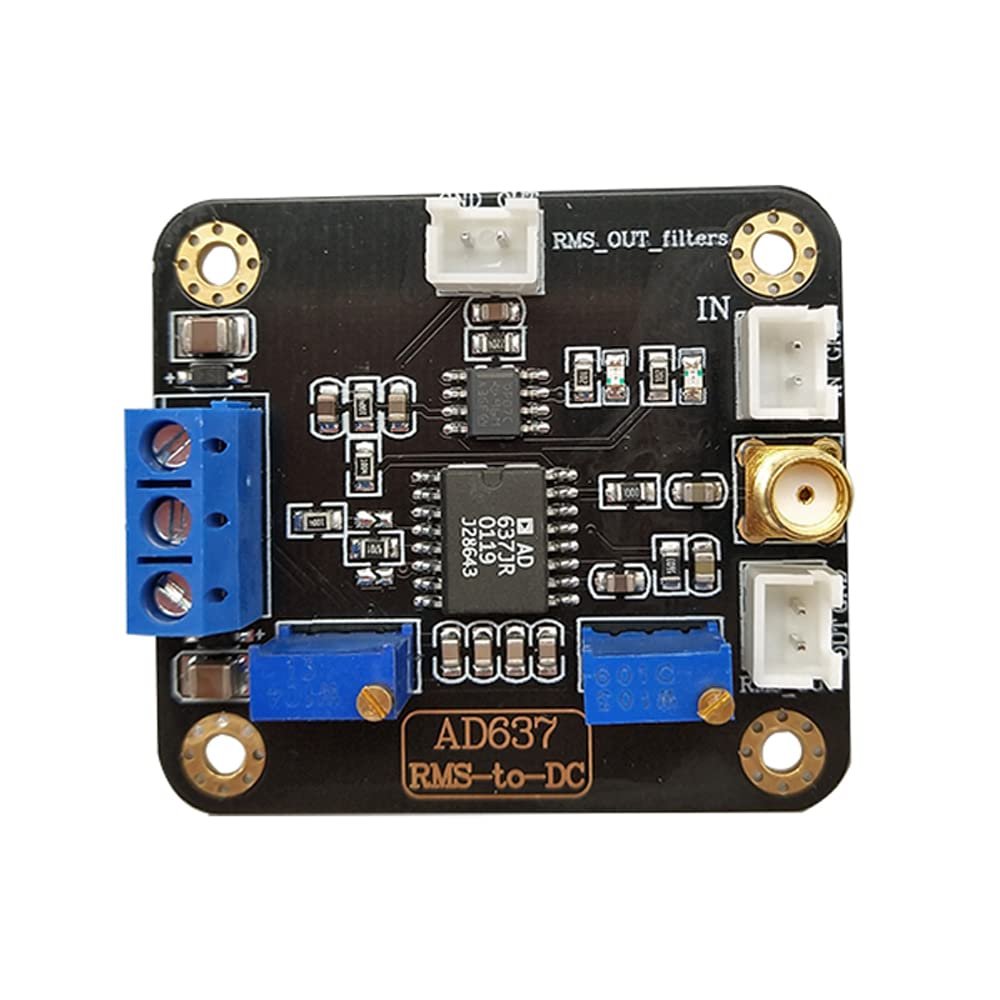

Q-BAIHE AD637 Module RMS Detection Module Peak Voltage Detection Module AC Signal Data Acquisition

Description

• Module Type: RMS Detector
• Module supply voltage: 5V~15V(MAX18V)
• Module supply current: 5mA
• Input frequency range: DC-8MHz
• Output current: 2mA(MAX)

Specification:
Module model: AD637
Module Type: RMS Detector
Module supply voltage: 5V~15V(MAX18V)
Module supply current: 5mA
Input signal formation: single-ended
Input voltage range: -45dBm--+30dBm (within 7VRMS)
Input frequency range: DC-8MHz
Input impedance: 0.85V-2.6V
Output current: 2mA(MAX)
Module dynamic range: 60dB
Module protection: reverse polarity protection, unlimited current protection
Module size: 50x45x14mm
Module operating temperature: -0 -- +75 (industrial grade)
Application range: peak voltage detection, data acquisition, etc.

Package: 1*RMS detector
