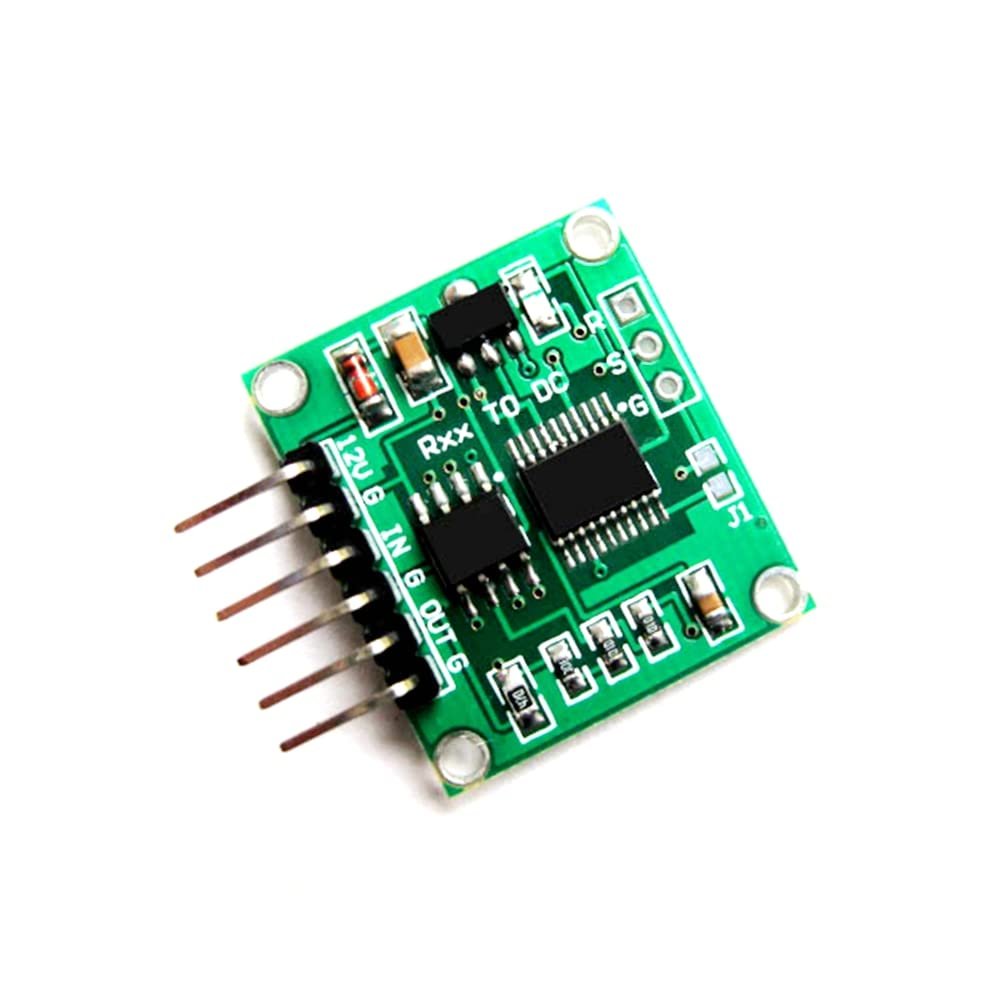

Potentiometer Resistance to Voltage 0-500 to 0-5v 0-10v Linear Conversion Transmitter Module

Description

• Working voltage: 9V~17V
• Input resistance: 0-500 ohms
• Output voltage: 0.00V~5.00V/0.00V~10.00
• Output method: J1 pad on the circuit board: open circuit (output 0.00V~5.00V); Short circuit (output 0.00V~10.00V), default to open circuit.
• Dimensions: (length) 26mm * (width) 23mm * (height) 10mm

Product parameters:
1. Working voltage: 9V~17V
2. Input resistance: 0-500 ohms
3. Output voltage: 0.00V~5.00V/0.00V~10.00V
4. Output method: J1 pad on the circuit board: open circuit (output 0.00V~5.00V); Short circuit (output 0.00V~10.00V), default to open circuit.
5. Dimensions: (length) 26mm * (width) 23mm * (height) 10mm
6. Drive method: No need to drive.
7. Application range: Potentiometer, resistance to voltage signal; Remote data acquisition and control equipment;
8. Module interface:

12V: Positive pole interface of power supply (9V~17V).
G: Power ground interface.
IN: Resistance input interface (0-500 ohms).
G: Power ground interface.
OUT: The output interface of the signal
(0.00V~5.00V/0.00V~10.00V).
G: Power ground interface.

The packaging includes:
1 pc resistor to voltage 0-500 ohms to 0-5v 0-10v linear conversion transmitter module
