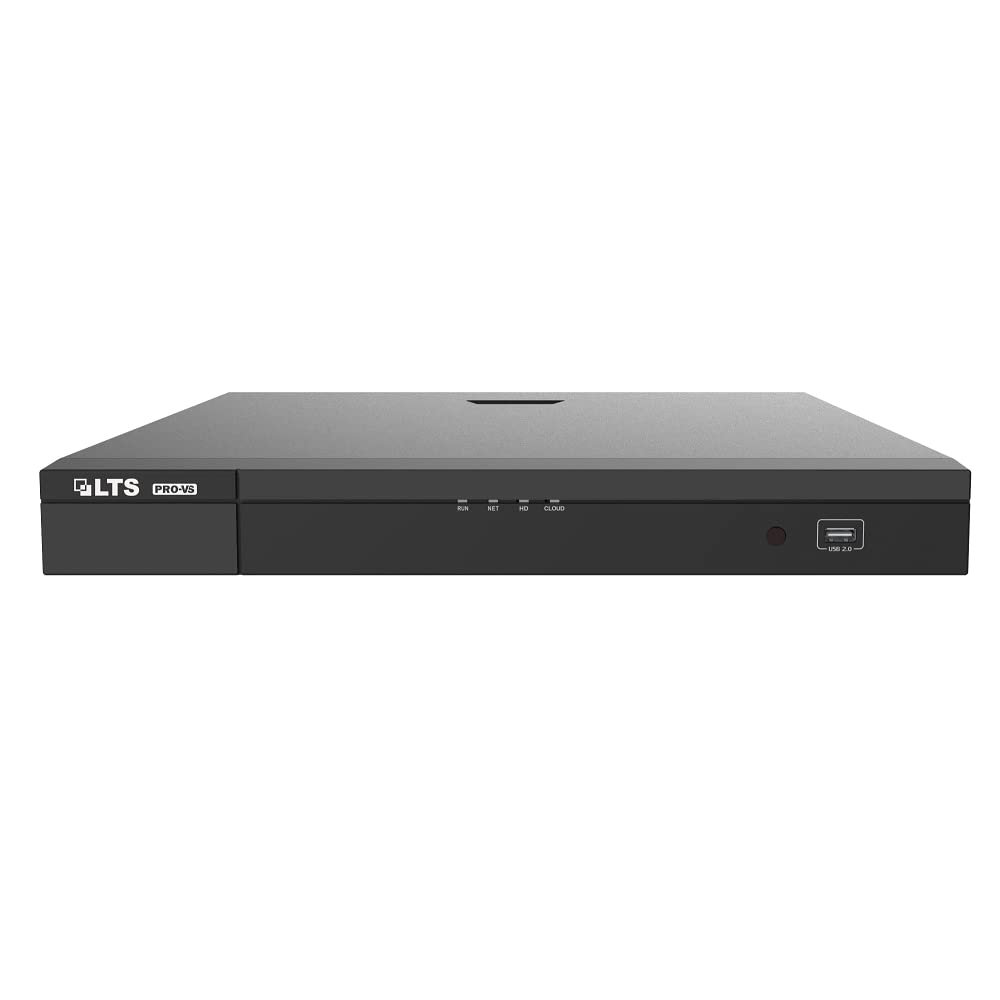

LTS VSN7208-P8 NDAA Pro VS HD IP H.265 8CH 160Mbps Up to 8MP Built-in POE 4K Display NVR

Description

• Video Input: 8CH IP@160Mbps, Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P, Max. Recording Resolution: Up to 8MP(3840 x 2160), Decoding Format: H.265/H.264, Decoding Capability: 2CH@4K / 8CH@1080P, Max. Playback Resolution: Up to 8MP(3840 x 2160), Audio In/Out: 1CH/1CH, RCA, Alarm In/Out: 4CH/1CH, Built-in PoE: 8CH, Network: 10M/100M/1000M, 1 RJ45, Storage: 2 SATA up to 10TB, Backup: 1 USB 2.0, 1 USB 3.0, Dimensions: 14.9(W)x12.4(D)x2.1(H), Recorder Case: 1U
• Video Input: 8CH IP@160Mbps Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P Max. Recording Resolution: Up to 8MP(3840 x 2160) Decoding Format: H.265/H.264
• Decoding Capability: 2CH@4K / 8CH@1080P Max. Playback Resolution: Up to 8MP(3840 x 2160) Audio In/Out: 1CH/1CH, RCA
• Alarm In/Out: 4CH/1CH Built-in PoE: 8CH Network: 10M/100M/1000M, 1 RJ45
• Storage: 2 SATA up to 10TB Backup: 1 USB 2.0, 1 USB 3.0 Dimensions: 14.9(W)x12.4(D)x2.1(H) Recorder Case: 1U

Model VSN7208-P8 Video/Audio Input IP Video Input 8-ch Two-way Audio Input 1-ch, RCA Network Incoming Bandwidth 160Mbps Outgoing Bandwidth 64Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra265/H.265/H.264 Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 Hard Disk SATA 2 SATA interfaces Capacity Up to 10TB for each disk External Interface Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 Alarm In 4-ch Alarm Out 1-ch PoE Interface 8 independent 100Mbps PoE network interfaces Max Power Max 30W for single port Max 130W in total Supported Standard IEEE 802.3af/at General Power Supply 100 ~ 240 V AC Power Consumption: 10W(without HDD) Working Environment -10C~+ 55C (+14F~+131F), Humidity 90% RH (non-condensing) Dimensions (WDH) 380mm 315mm 53mm (14.9" 12.4" 2.1") Weight (without HDD) 2.6kg (5.29lb)
