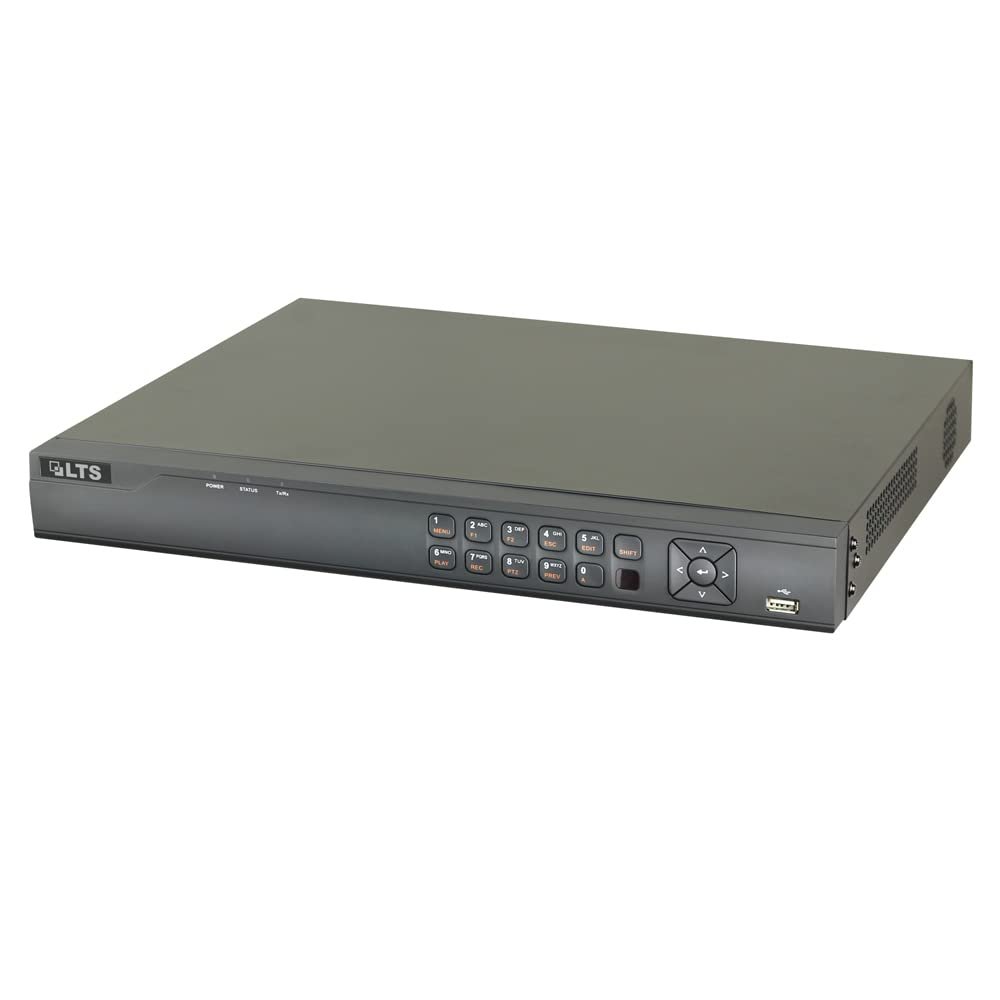

LTS LTD8316M-ET 16CH 2MP TVI AHD Analog CVI and 8CH 4MP IP 5 in 1 1080P HDMI DVR

Description

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable
• Up to 24-ch IP camera inputs (up to 6 MP) Up to 10 TB capacity per HDD

Specifications Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and reduce false alarms caused by objects like leaves and lights Quick search by object or event type is supported Perimeter Protection Human/Vehicle Analysis Up to 4-ch Facial Detection Facial detection and capture 1-ch human face capture (HD analog camera) Recording Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding resolution Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) Video bitrate 32 Kbps to 6 Mbps Dual stream Support Stream type Video, Video & Audio Audio compression G.711u Audio bitrate 64 Kbps Video and Audio IP video input 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog video input 16-ch BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection HDTVI input 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps The 3 MP signal input is only available for channel 1/2/3/4 of LTD8316M-ET. AHD input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps CVBS input PAL/NTSC CVBS output 1-ch, BNC (1.0 Vp-p, 75 ) Resolution: PAL: 704 576, NTSC: 704 480 HDMI/VGA output 1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz, HDMI/V
