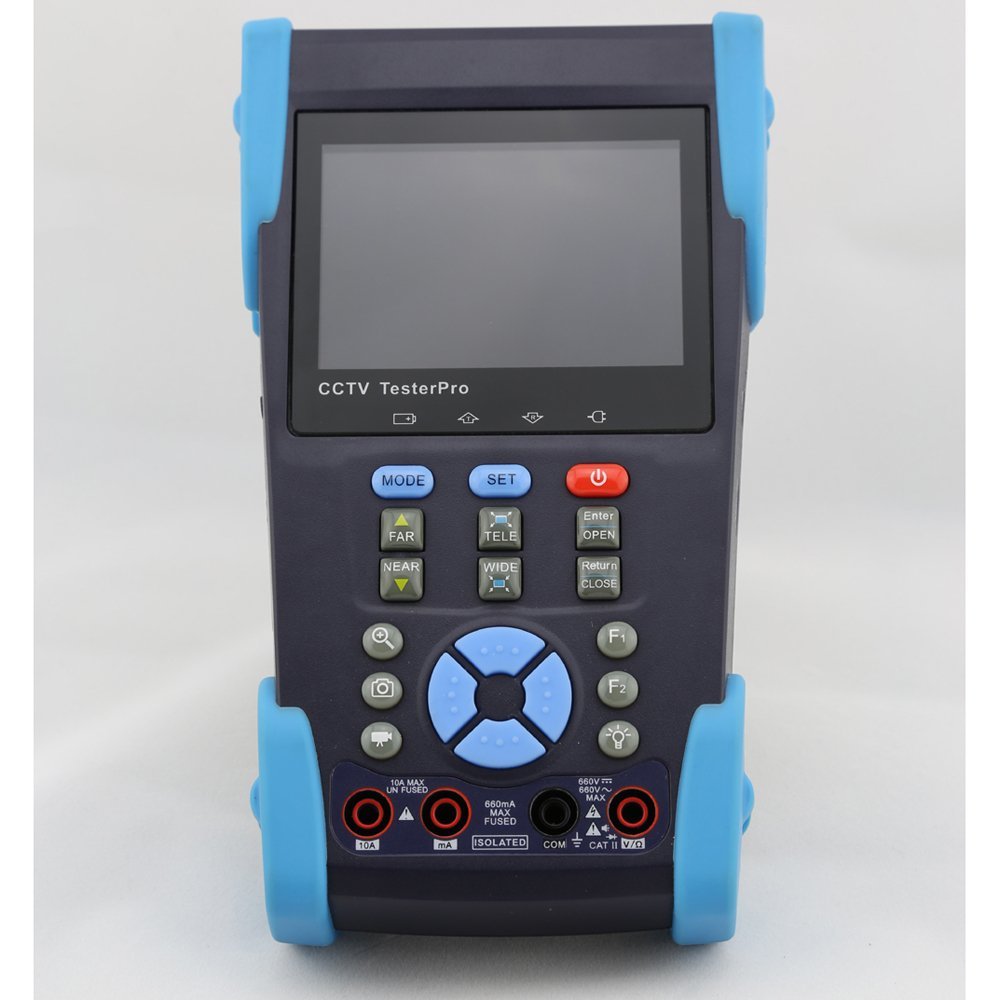

Liquor New Style HVT-2613 3.5 inch CCTV Security Tester PRO Audio Video Monitor

Description

Model HVT-2613? CCTV Security TesterPRO
Video Test
Signal Mode:NTSC/PAL (Auto adapt)
Display:3.5 inch, 480 (RGB) x 320
LCD Adjustment:Brightness, Contrast, Saturation and Backlight Brightness adjustable
Video IN/OUT:1 channel BNC Input & 1 channel Output
Video Output Mode:1.0 Vp-p
PTZ Controller
Communication RS232, and RS485
PTZ Protocol Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate 600,1200,2400,4800,9600,19200, 57600, 115200 bps
Video Signal Generation
Color Bar Generation Output channel colorbar video signal for testing monitor or video cable
UTP Cable Test
UTP Cable Test Test UTP cable connection status and display in the screen. Read the number of the test box.
DC12V 1A Power Output
DC12V Power Output? Output DC12 V 1mA power for camera
Video Signal Test
Signal Strength Test Test the signal level, and display the abnormal information.
Audio Input Test
Audio Input Test test the pickup and other audio equipments on the front-end
10 x Zoom
10 x Zoom Can observe the local details by magnifying the video in 1x, 2x, 10x.
Optical Power Meter
Wavelength 850, 1300, 1310, 1490, 1550, 1625 nm
Linker FC/PC
Measurement Range -70~+10 dBm
Accuracy 0.001 nW
Locking Display Yes
Differential Value Measurement Display the differential value with the value tested first time.
Power
Power Adapter DC 5 V, 2 A
Battery
Built-in 3.7 V Lithium polymer battery, 3000 mAh

Rechargeable After charging 3-4 hours, working time lasts 12 hours.
Low Consumption Energy saving technology

Package including:
1*Security Tester
