LIBODD Transistor Tester High Precision LCD Digital Meter Diode Triode Capacitance ESR MOS/PNP/NPN LCR MOSFET TFT(TC-T7-H)

Description

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• External Interfaces: One is equipped with external interfaces for connection and data transfer to other equipment or computers for more extensive data processing and analysis.

High Precision Transistor Tester MTT-V1 TCR-T7 LCR-TC1 LCD Digital Meter Diode Triode Capacitance ESR MOS/PNP/NPN LCR MOSFET TFT
What's the difference between LCR-T7 / LCR-TC1/TC-T7-H/LCR-TC2?
LCR-T7 / LCR-TC1:
Color screen two functions are the same! T7 is slightly faster!
The TC1 screen is slightly larger and they are all powered by lithium
batteries. In addition to measuring resistance, capacitance, inductance,
diodes, MOS transistors, thyristors, it can also measure additional
voltage regulators, infrared decoding (limited to for format)
TC-T7-H: is an upgraded version of LCR-T7, Up-to-date / fastest version
LCR-TC2:
is upgraded version of TC-T7-H. Compared with TC-T7-H, it has upgraded
circuit structure, long-lasting battery life, optimized code, resistance
is one thousandth (this is related to repeated test consistency, that
is, the same resistance is not repeated test There will be changes, and
some repeated tests will have errors)
MTT-V1(Upgraded version)
Based on the original NEC encoding format, expanded to support up to 15 commonly used encoding formats.Added infrared emission/infrared remote control functions, supporting 15 common market coding formats such as NEC and RC5, which is convenient for engineering debugging.The UI interface is optimized, and the device plug-in key bitmap is more intuitive.
MTT-V1
Features:
1. Expanded infrared decoding material proposal format, based on the original NEC encoding format, expanded to support up to 15 commonly used encoding formats.
2. Added infrared emission/infrared remote control functions, supporting 15 common market coding formats such as NEC and RC5, which is convenient for engineering debugging.
3. The UI interface is optimized, and the device plug-in key bitmap is more intuitive.
4. Can not set the startup mode.
5. Automatic shutdown time background software settings, eliminating the trouble of disassembling the internal adjustment.
6. Newly designed ultra-thin body, mini size is easy to carry and does not take up space.
7. Standard in-line, SMD component expansion test socket and infrared emission button board.
8. Optimize the high-voltage start-up method, only start during the test of the Zener diode, which is more power-saving and safer.
9. Upgrade the Type-C charging interface to conform to the technological development trend.
Built-in lithium-ion battery voltage measurement star, built-in lithium-ion battery voltage detection pre-condition, when the battery voltage is lower than 3.0V will be forced to shut down, please charge. The tester is equipped with a Type-C USB interface as standard. When using an external 5V power supply or USB charging, when the power is off or the detection is successful, put the total voltage diode into the Zener diode test area of the test seat, and press the lock handle, press Winter function is healthy, the tester measures automatically, and the measurement results are displayed graphically when the test is completed.
Shipping list:
Browsing tester x1
Manual x1
Type-CUSB charging cable x1
DIP test accessories x1
SMD test accessories x1
Infrared keyboard x1
LCR-TC2/TC-T7-H/LCR-T7/LCR-TC1
Specification:
Self test with automatic calibration
Modles:LCR-TC2/TC-T7-H/LCR-T7/LCR-TC1
Size: 70*90*24m/ 2.71x3.58x1.10 inch
Display: 3.5inch TFT Screen, Color Screen
Diode Range: less than 4.5V
Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50M
Inductance: 0.01mH-20H
Power Voltage: 3.7V
Power: Built-in Rechargeable Lithium Battery
Measurement results using TFT graphic display (160x128)
One-button operation
Auto power off (timeout setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Support Chinese and English
Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!
Transistor Detection:
After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it on!
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

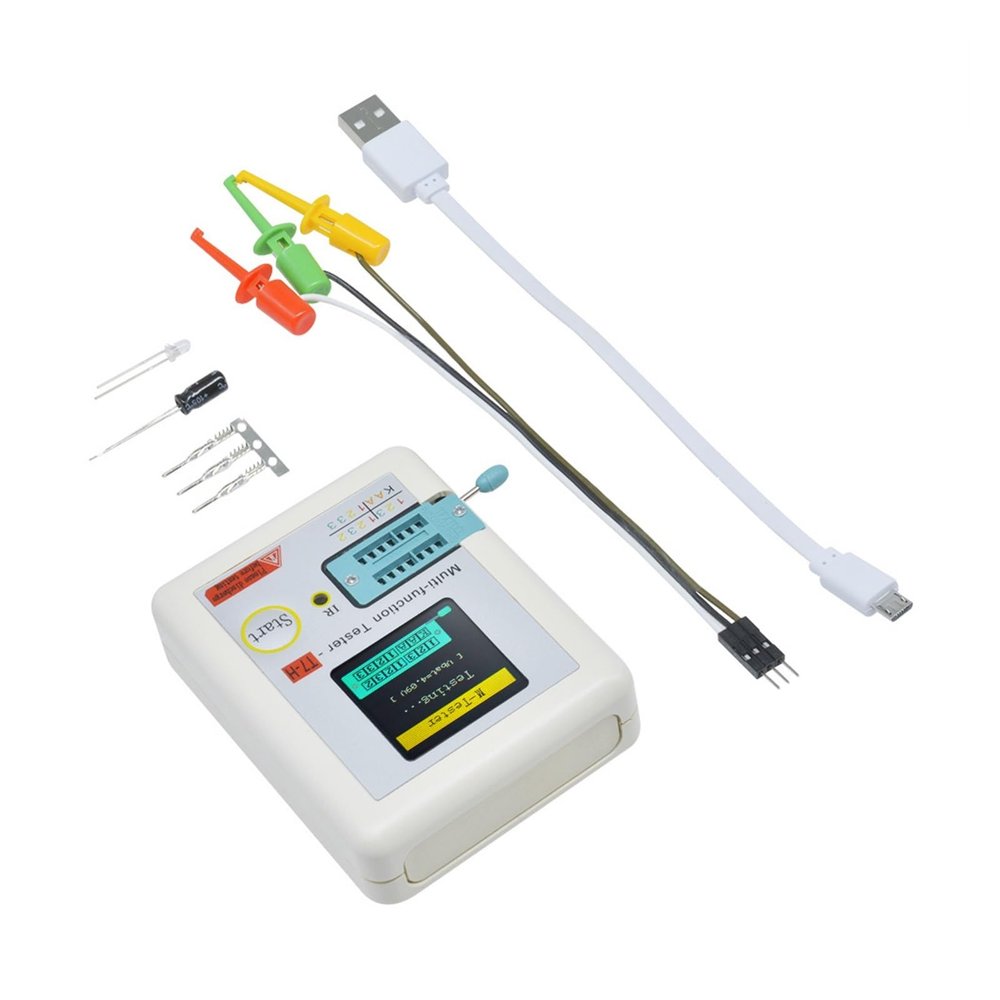

Package Included:(Model is optional)
1 * Tester
1 * USB Cable
1 * Test Clip
1 * LED
1 * Capacitance
1 * Resistance
LCR-T4-MAX Description
Product features:
The tester has stable performance, can automatically read accurate data, and is easy to use
Suitable for electronic hobbyists, electronic developers
