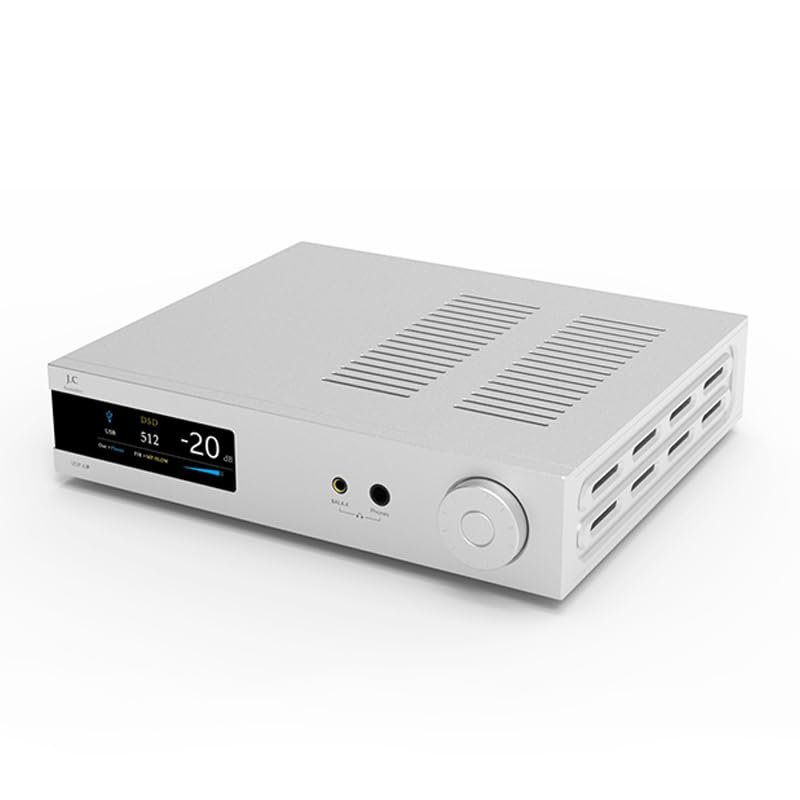

LEAUDIO J.C Acoustics UDP-6P ES9039SPRO Desktop DAC & Headphone Amplifier

Description

• 3-inch IPS Wide-viewing-angle Color Display Screen Exquisite color multi-function Ul interface, detailed multi-function settings of secondary menu,Full remote control, delay mute protection, low-voltage standby,No-signal automatic sleep, brightness level, fine tuning of channel balance and other rich functions, multiple output modes, separate headphone jack output, separate XLR/RCA line output, all mute or all synchronously output.
• Technology of machining aluminum mirror surface with aviation aluminum material and single crystal diamond cutter Ultra-fine ceramics sandblasted and oxidized processing,as delicate as smartphone
• XMOS XU216 PCM 768KNATIVE DSD512The USB interface adopts XMOS XU216 chip, which supports the decoding capable up to PCM 768K,NATIVE DSD512 with customized German THESYCONUSB AUDIO driver.
• High-quality power supply a cornerstone of good soundThe power supply uses a customized high-grade 60VA circular transformer, adopts imported Class A iron core and oxygen-free copper enameled wire, cooperates with a high-current Schottky rectifier tube and a filter capacitor of nearly 30,000 UF, and supplies 5-line regulated power supply, in which each group of line power has low-noise and high-current output capability
• Fully balanced full DC ultra-high speed amp circuitThe audio circuit is designed with fully balanced pure DC amplifier circuit.and the signal channels from DAC output to IV, LPF, BUFF and audio line output to the output of the amp have no coupling capacitance, thus realizing clear and accurate reproduction of music information and soft,delicate and smooth timbre.

Product information USB Input: DOP&Native DSD64-DSD512; PCM:16-32bit,32K-768KHz Coaxial/optical Input: PCM:16-24bit,32K-192KHz IIS-LVDS Input: DOP&Native DSD64-DSD512; PCM:16-32bit,32K-768KHz DAC parameter XLR Output Frequency response: 20-40KHz,0.2dB THD+N0.00015%-6dB@1KHz/A-weight SNR:120dB Channel Separation:-133dB@1KHz Line-Out power:2.3Vrms/RCA,4.6Vrms/XLR Headphone amplifier parameters Headphone socket: 4.4mm balance output/6.35mm single-ended output THD+N:0.00025%,4Vrms@1KHz/A-weight/4.4 Balance Dynamic range:133dB Channel separation:-133dB@1KHz 4.4 Balancing Output Power:7500mW@32900mW@300450mW@600 6.35 Single-Ended Output Power1850mW@32225mW@300112mW@600 Standby power3W Working power25W Machine size239*50*208mmDoes not include pins and protrusions Weight3KG
