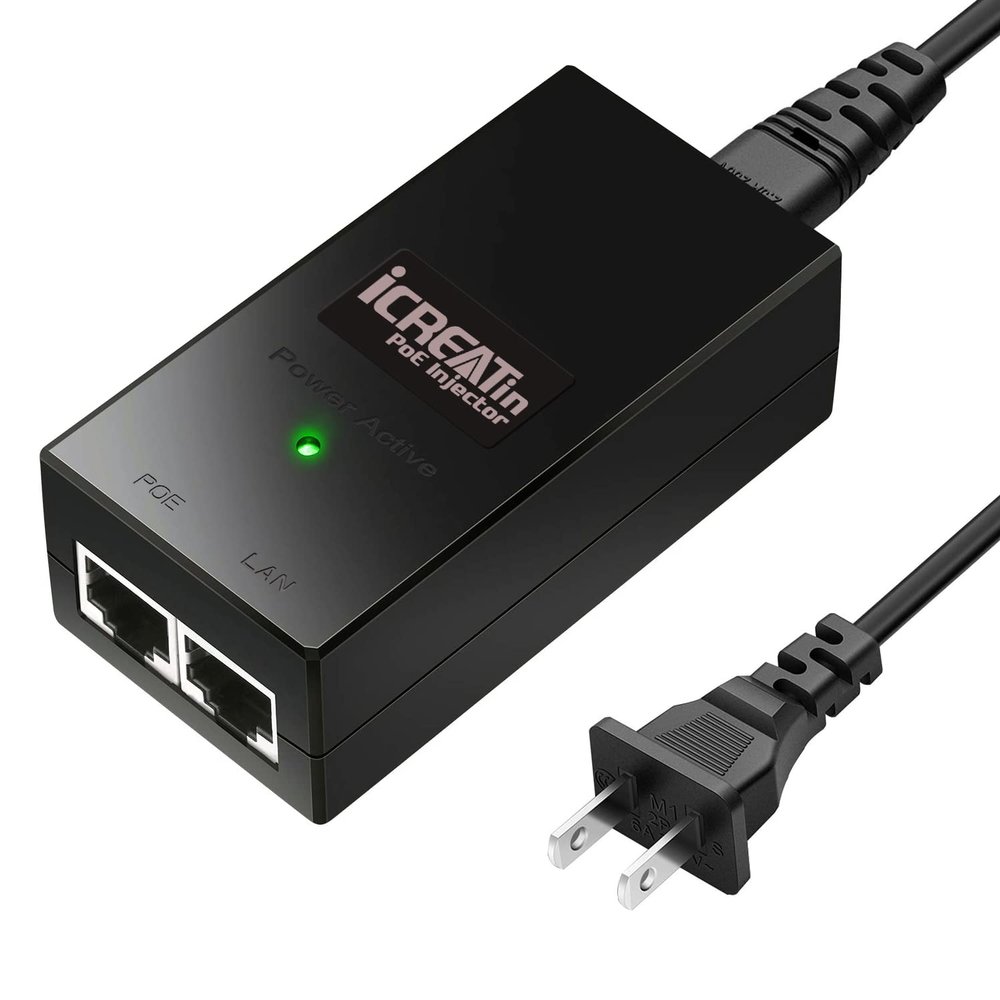

30W Gigabit POE+ Injector Adapter, IEEE 802.3at / 802.3af Compliant, 10/100/1000Mbps RJ45, Repace for Ubiquiti U-POE-at,U-POE-af, POE-48-24W-G, TP-Link TL-POE160S, TRENDnet TPE-115GI

Description

• Converts a non-PoE Gigabit port to a PoE Gigabit port and network a PoE device located up to 100 meters (328 ft.) Away. If you have a PoE (802.3af) standard device, and need to use PoE technology to provide it with both network and power.
• Gigabit PoE Plus Injector Built-in Auto sensing technology delivers Up to 30W of power over ethernet, Supplies PoE (15.4W) or PoE+ (30W) Power
• Compact and cost effective PoE+ injector which offer multiple protection, such as over current protection, over load protection, over voltage protection and anti-interference protection.IEEE 802.3af compliant
• Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installations scenarios.Whether you want to use it with an IP camera in your home or work place, a VoIP phone used in a conference room, or use it to provide power and network to a wireless AP, this item is very suitable as long as your device is 802.3af /at standard 48V PoE.
• Compatible with Ubiquiti U6 AP U6-LR, U6-LITE & U6-PRO U-POE-at POE-48-24W-G, TL-POE160S TL-POE150S, TL-PoE4824G for most Gigabit 802.3af IP camera, IP Phone, Wireless IP point and other PoE devices.

Use PoE injector with PD to expand your network to where there are no power lines or outlets,where you wish to fix devices such as AP ,IP camera or IP Phone etc.

This PoE injector is a single port Gigabit PoE injector offer a compact and cost effective,it can convert standard 100-240V ac power into low-voltage.DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories. Remote powering of wireless LAN(WAN) access points,IP security cameras,VoIP telephone and other low port density installations.

Features: Up to 15.4W/30W of Power on 2-pairs for IEEE802.3at and IEEE802.3af POE Devices
Supports 10/100/1000 Base-T applications
Led indicators power input and PoE output
Internal AC/DC converter no need for external power brick
Easy plug and play installation
Muti-protection,

Specification:
Pass Through Data Rates: 10/100/1000Mbps
Output Power Voltage: 54~55VDC
PoE Port Power: 30W max
AC Input Voltage: 100-240VAC
Ac Input Current: 0.5A 100-240VAC
AC Frequency: 50 to 60 HZ
Dimensions: 85x42x30 mm & 3.3x1.65x1.18 in
System Indicator: AC power
Connectors: shielded RJ-45,EIA 568A and 568B
Operating Ambient Temperature: -0 to 40
Storage Temperature: -40 to 60

Installation Steps:
1.Use a CAT5 UTP cable to connect port of Ethernet devices to the LAN port
2.Connect AC cable with Injector and Socket
3.Connect the PoE OUT port to a PD with CAT5 UTP cable
