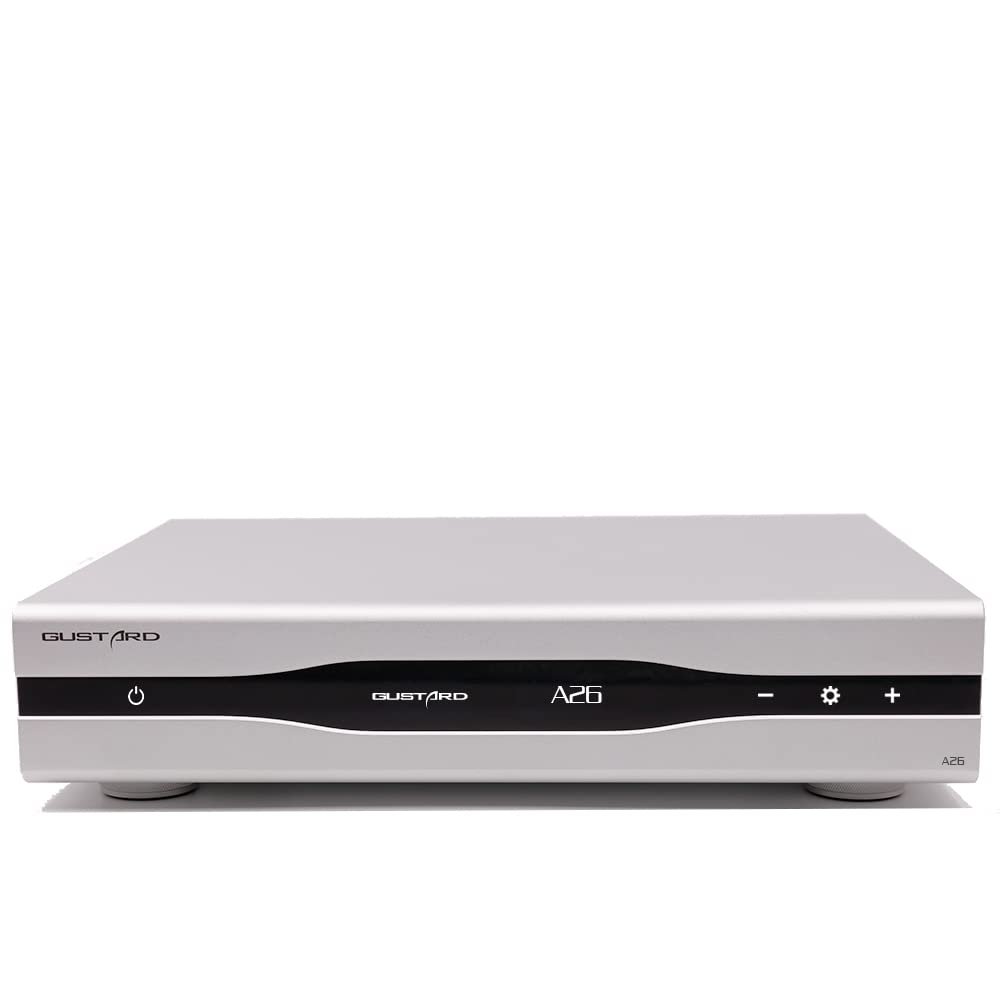

Gustard A26 DAC MQA Dual AK4499EX AK4191 with Streamer/Renderer XMOS DSD512 PCM768K MQA384K IIS Balanced Audio Decoder(Sliver)

Description

• Dual AK4499EX & AK4191 DAC Chips The GUSTARD A26 DAC combines two AK4499EX DAC chips with one AK4191 modulator from Asahi Kasei Microdevices. With independent power supply and grounding for each channel, separate digital-analog architecture eliminates interferences from the beginning. Note: Currently, the A26 firmware upgrade only supports Windows. Please contact the seller for details.
• FPGA Exclusive Technology & Streamer / Renderer Adopting FPGA exclusive technology, the A26 features signal routing, clock management, 2rd order PLL, DOP decoding, and Depop for PCM & DSD. Besides, utilizing Streamer/Renderer, an easy access to high-quality online streams, the GUSTARD A26 can supports Roon /UPnP /HQ Player NAA at present, and there will be more protocols in the future.
• Clock Synthetization & XMOS XU216 Solution Equipped with K2, ultra-low noise clock synthesizer, the A26 DAC features a precision clock from local oscillators or external clock in. It is worth mentioning that the GUSTARD A26 can replace the input signal' s clock with precision oscillators (local or external) and avoid the interference from the input source' s clock. In addition, the A26 DAC applies XU216 from XMOS, supporting up to PCM768 (with MQA-support) and DSD512.
• LPF Discrete Circuits Design LPF is specifically designed for the AK4499EX using discrete devices, whose final parameters of the circuit are adjusted with subjective listening. Different from ICs, these discrete circuits provide the possibilities to control every detail in sound and performance. However, these parasitic effects would introduce huge challenges to development experience and device's quality.
• Full-Functional Remote Control Except for its excellent configuration, GUSTARD A26 characterizes a sandblasted aluminum alloy case with an OLED display and a touch panel. And users can easily enjoy their music rich in details by using the standard remote control.

Note: Currently, the A26 firmware upgrade only supports Windows. Please contact the seller for details.
Features
AK4499EX DAC & AK4191 Modulator.
roon bridge, upnp...
Clock systhesization with precision oscillators.
Exclusive technology over FPGA.
6 PCM filters & 2 DSD filters & DSD Direct mode.
Parallel hybrid I/V convertors.
Specifically designed LPF circuits.
XU216 from XMOS, supports up to PCM768(with MQA-support) & DSD512.
Two specific toroidal transformers for audio application
Independent regulators and filters.
Adjustable brightness with power saving mode
Remote & Touch Panel

Input
IIS/USB/LAN: DSD64-DSD512, PCM 44.1K-768K, MQA 8X
COAX/AES/OPT: DSD64(DoP), PCM 44.1K-192K, MQA 8X
LAN: Roon/UPoP/HQPlayer NAA (more in the future)
10M Clock in: 50 BNC, 0dBm-20dBm, square wave 0.2-3.3V, sinewave 0.5-3.3V

Output
Frequency Response: 20-20kHz(0.2dB)
Dynamic range: >127dB
Signal-to0noise ratio: >126dB
Crosstalk: -139dB @1kHz
THD+N: 0.0001% @1kHz
IMD: 0.001% @-1dbfs
RCA: 2.5Vrms (VOLUME FIXED) 100
XLR: 5.0Vrms (VOLUME FIXED) 100
RCA pinout: 1-Ground 2-Hot 3-Cold
XLR pinout: 1-Ground 2-Hot 3-Cold

Others
Power Supply: AC115V/230V 50/60Hz
Power Consumption <30W
Size: 330mm (Width) * 260mm (Length) * 65mm (Height) (protrusion not included
Packing size: 420mm (Width) * 360mm (Length) * 175mm (Height)
Weight: 7kg (with package)
Sandblasted alumunum alloy case: Silver or Black version

Package list:
1 x A26
1 x AC cable
1 x USB cable
1 x Remote Control
1 x Warranty card
