Generic TOA Electronics WP-700-AM Remote Control Panel; Switch/Volume Panel for MA-725F Matrix Amplifier and MM-700F Matrix Pre-Amplifier, White

Description

• Up to 4 units can be connected to one MA-725F/MM-700F unit. (1 WP-700 per each output channel)
• Single CAT5/5e/6 STP cable is required for each connection. (Max. 300 feet)
• Select input source and adjust volume level of connected output
• It can be mounted in a 1-gang standard electrical box

TOA Electronics WP-700-AM Remote Control Panel; Switch/Volume Panel for MA-725F Matrix Amplifier and MM-700F Matrix Pre-Amplifier, White

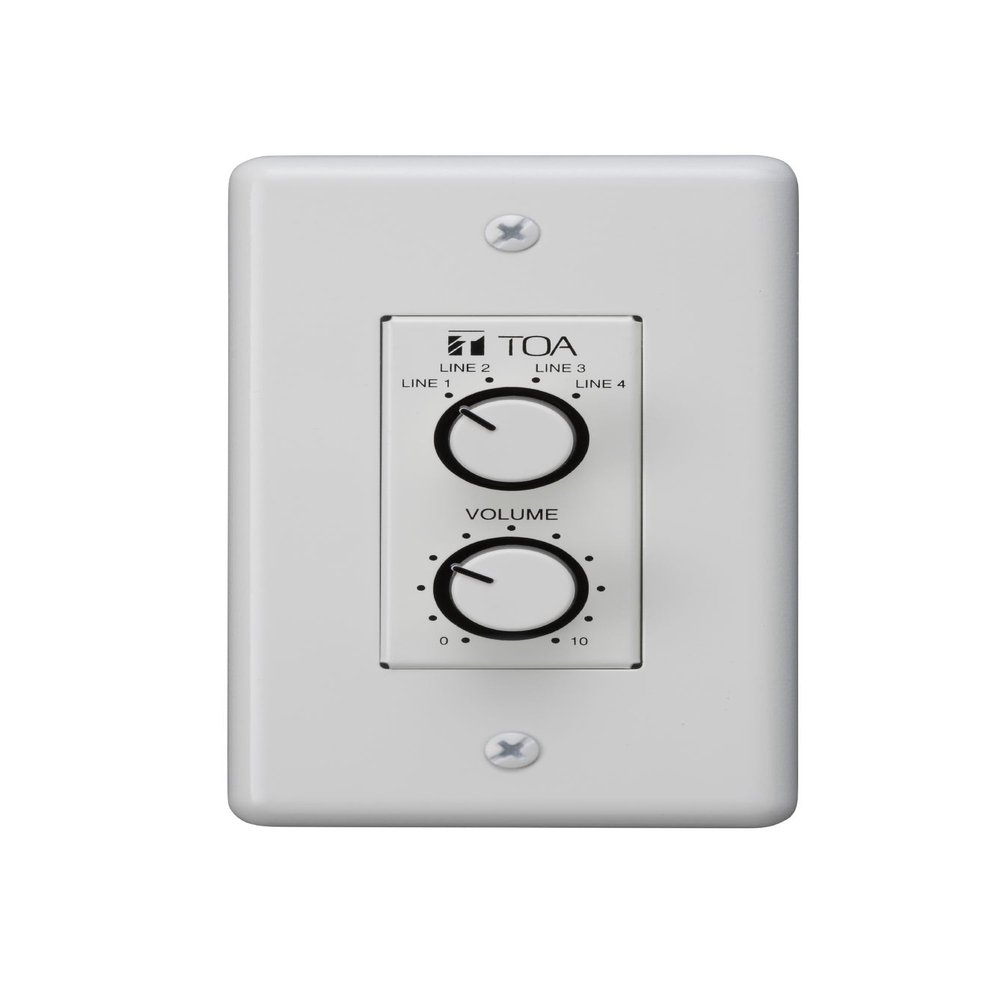

The WP-700-AM is a remote control switch/volume panel that designed for MA-725F (or MM-700F) amplifiers, which can remote select input source and adjust volume level through Ethernet cable connected to MA-725F (or MM-700F) amplifier, also it can be mounted in a 1-gang electrical box (American type)

Key Features

-Select input source and adjust volume level of connected output
-Up to 4 units can be connected to one MA-725F/MM-700F unit. (1 WP-700 per each output channel)
-Single CAT5/5e/6 STP cable is required for each connection. (Max. 300 feet)
-It can be mounted in a 1-gang standard electrical box

Specifications:
-Applicable Cable: CATB / Se / 6STP cable
-Control Operation: Input select switch X1, Volume control knob X1
-Terminal: RJ45 connector
-Operation Temperature: 10C to 40C (14F to 104 F)
-Finish: Surface treated steel plate, white paint (RAL9016)
-Dimension 72mm (W) X 128mm (W) X 60mm (W) - (2. 83"X5 .04"X2 .36")
-Weight 210g (0.46lbs)
