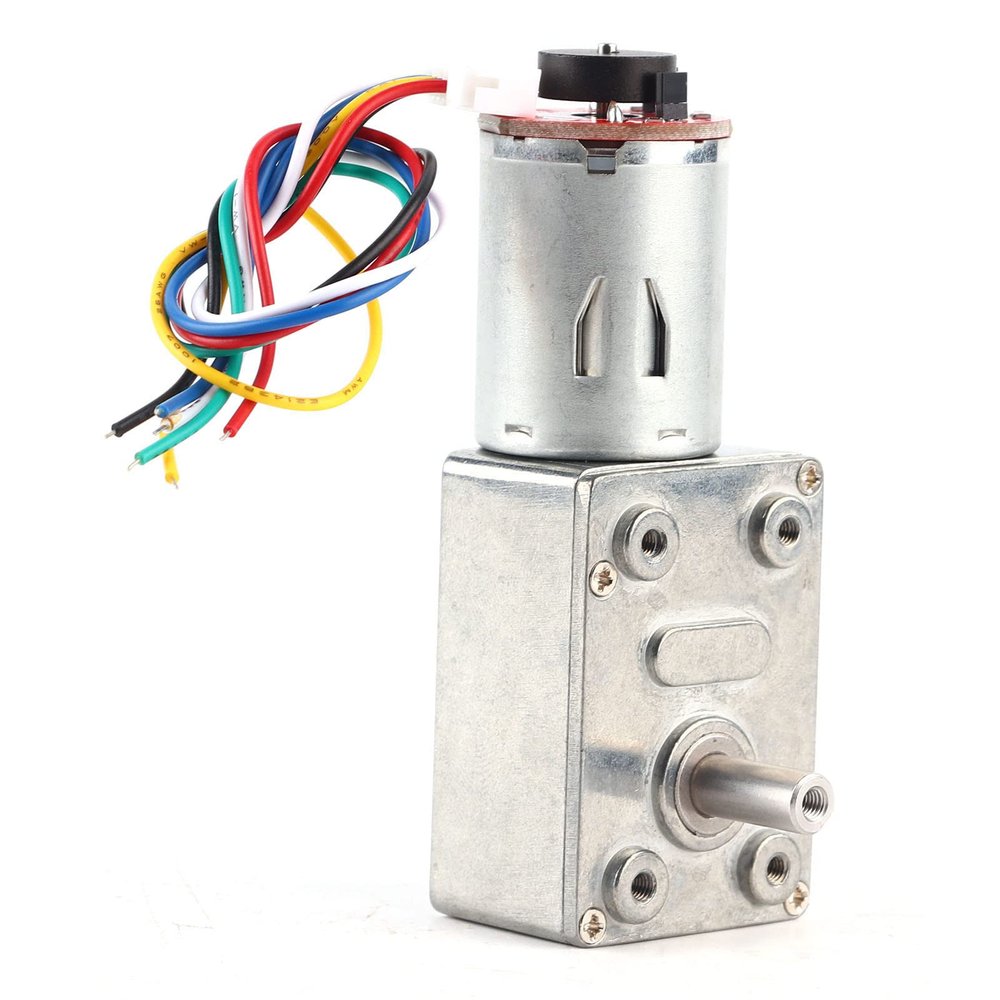

Gear Reduction Box Dc 12V Geared Motor High Worm Gear Reducerwith Encoder Srong Self Locking (30RPM)

Description

• Two Phase with Encoder: This gear reduction box is a two phase reduction gear motor with encoder. The encoder provides additional functionality and precision in controlling the motor's movement
• Precious Metals Carbon Brush: It uses precious metals carbon brush, which contributes to longer service life. The carbon brush also helps in reducing noise and ensuring smooth operation
• Large , this geared motor is ideal for applications that require reliable and powerful performance
• Stable and Reliable Performance: The motor offers stable and reliable performance, ensuring consistent operation over time. This makes it suitable for demanding applications
• flexibility in operation. This feature makes it work more accurately and adapt to different tasks

Description:
Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.

Specifications:

Speed(rpm) 10 20 30 40 100
Rated (kg.cm) 22.5 12 7.4 5.6 1.5
Max.(kg.cm) 25 25 25 24 6.4
Reduction Ratio 600 340 200 150 40
No-load Current(MA) 60
Rated Current(A) 0.6
Stall Current(A) 1.3
Weight: 165g(approx.)

Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: feedback
Green: feedback
Blue:Coding power + positive(3.3-5V)polarity cannot be wrong
White:Motor power - (exchange can control rotating and reversing)

Package Includes:
1 x Motor
1 x Wiring Harness

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
