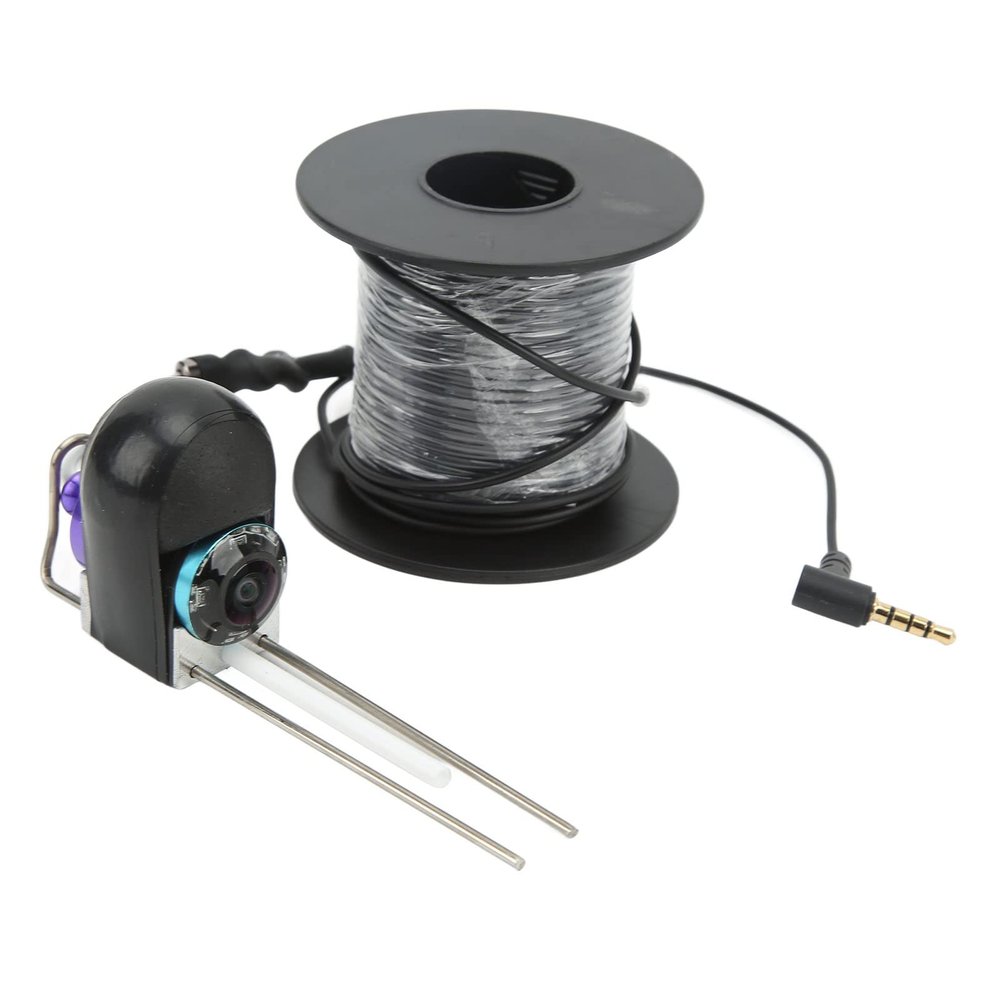

Fish Finder Camera,Underwater Fishing Camera,Professional CVBS Format HD Transmission Underwater Fishing Camera with Fishing Line for Boat(20M)

Description

• Parameters: Effective pixels are NTSC: 720 (H) X480 (V); Minimum illumination of 0.0001 Lx / F12; Horizontal definition: CVBS: 340,000 pixels.
• Premium Material: Fish finder camera is made of premium aluminum alloy, which is durable, has a long service life.
• Widely Compatible: The underwater fishing camera comes with a 3.5mm model headphone head, which is compatible with most display devices.
• Plug and Play: The underwater fishing camera requires no soldering and can be plug and play, as long as your display has a 3.5mm headphone jack.
• Cautions: Fishing camera wiring method please refer to the selling point diagram, if our way is inconsistent with your display wiring sequence, you can rewire and use by yourself.

Specification:
Item Type: Fish Finder Camera
Material: Aluminum Alloy
Headphone Head Model: 3.5mm, 1.4cm/0.6in
System Standard: NTSC
Effective Pixels: NTSC: 720 (H) X480 (V)
Minimum Illumination: 0.0001 Lx / F12
Horizontal Definition: CVBS: 340,000 Pixels
Angle: 195 Degree Wide Angle
Scanning Frequency: 60Hz
SNR: >46dB
Video Output: 1.0V p p
Operating Temperature: -10C to 70C
Power Supply: DC 5V-28V (10%)
LED Light: 940 Light
Interface Signals:
Positive: VCC Voltage Range: DC 5V-28V (10%)
Negative: GND
VIDEO: VIDEO
Light Control: LED

Package List:1 x Fish Finder Camera
Note:Please allow some error in manual measurement.
