DYP-A19 Kit Application Support Lorawan NB-IoT Sigfox IOT Device Smart Parking Equipment System Smart City Parking Sensor (Switch, 1)

Description

• Features of the A19 module include millimeter resolution, 28cm to 450cm range, Multiple output interfaces optional: PWM pulse width, UART controlled, UART automatic, Switching.
• ABS house IP67.
• The module has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy and low power consumption.
• In addition,, Firmware filtering for excellent noise tolerance and clutter rejection

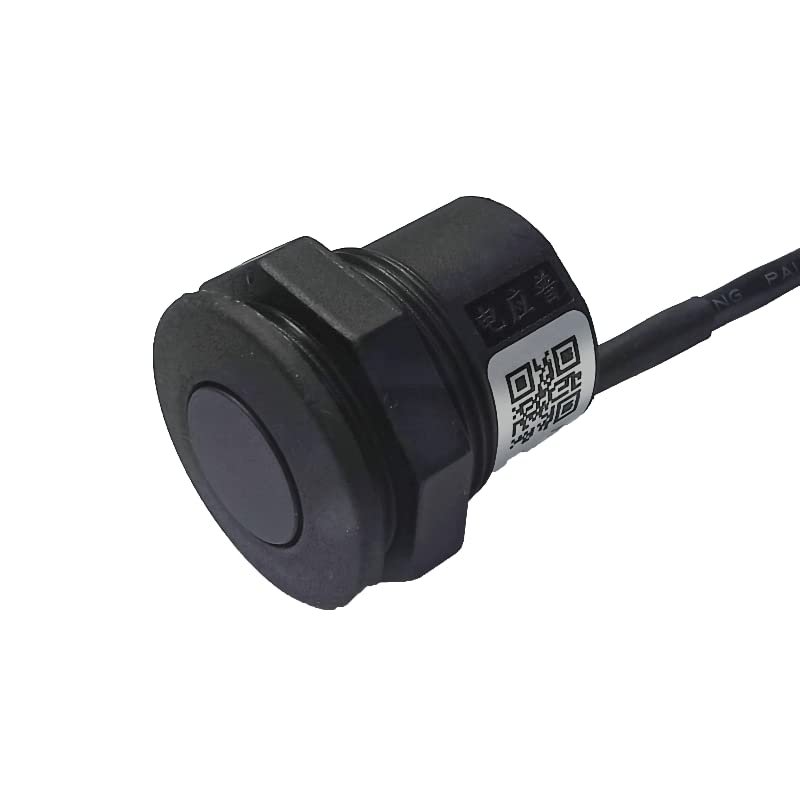

A19-module uses ultrasonic sensing technology for distance measurement. It adopts a transmitter-receiver integrated enclosed waterproof cable probe IP67.

Product Specifications:
mm level resolution
On-board temperature compensation function, automatic correction of temperature deviation
40kHz ultrasonic sensor measures the distance to the object
Multiple output interfaces optional: PWM pulse width, UART controlled, UART automatic
Dead band 25cm
Max range 450cm
Working voltage is 3.3-5.0V
Low power consumption design, standby current 10uA
Measurement accuracy of plane objects: (1+S*0.3%)cm, S represent the measurement distance
Small and light module
Designed for easy integration into your project or product
Operating temperature -15C to +60C
Waterproof IP67

Recommend for robot obstacle avoidance and automatic control
Recommend for object proximity and presence detection applications
Recommend for parking management system
