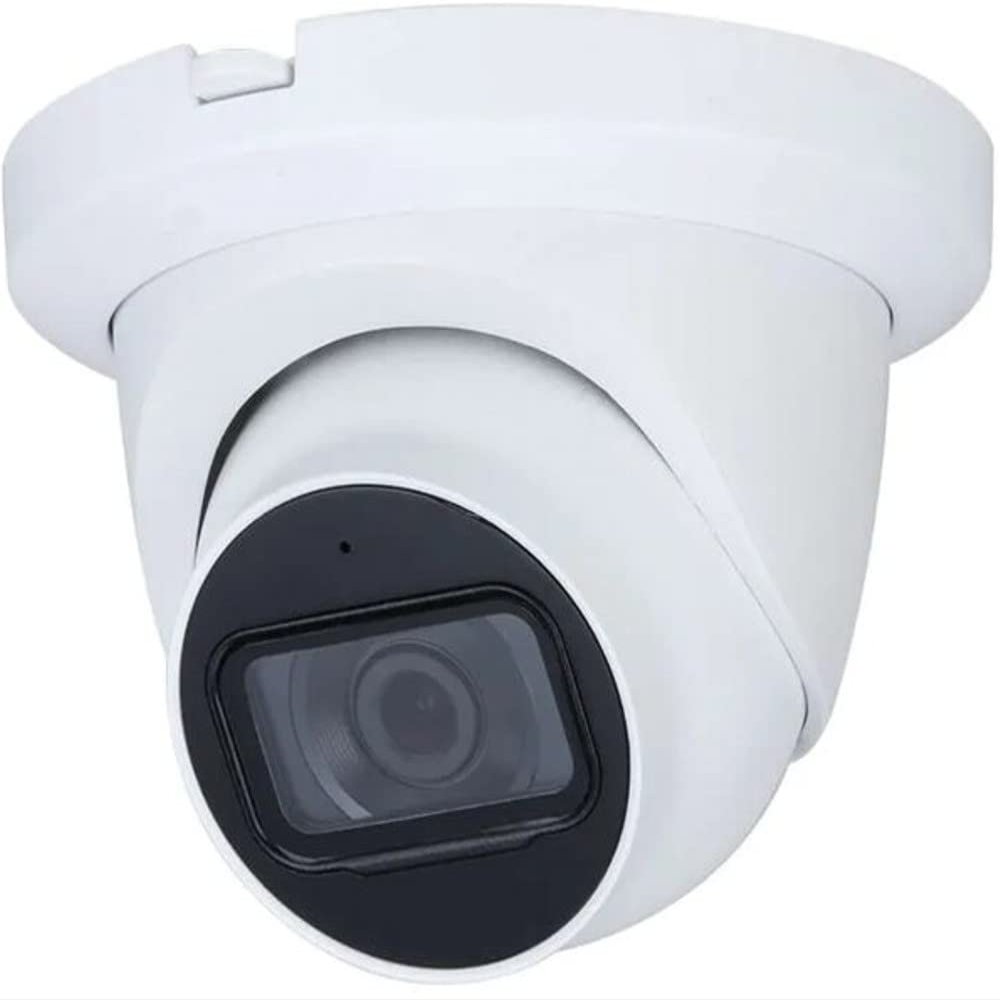

Diamond HCC3320TLMQ-IRA/28 2MP HDCVI IR Eyeball Fixed Security Camera, 1/2.7" CMOS Image Sensor, Max 30fps@1080P, 2.8mm Fixed Lens, Up to 30m (98ft) IR Distance, Smart IR, IP67, DC12V

Description

• Max 30fps@1080P, Easy-to-install eyeball
• Switchable CVI/CVBS/AHD/TVI
• 2.8mm fixed focal lens
• 98 feet (30 meters) IR range, Smart IR
• IP67, DC12V; DIP Function, WIRELESS AP

Diamond HCC3320TLMQ-IRA/28 2MP HDCVI IR Eyeball Fixed Security Camera, 1/2.7" CMOS Image Sensor, Max 30fps@1080P, 2.8mm Fixed Lens, Up to 30m (98ft) IR Distance, Smart IR, IP67, DC12V

Key Features
- Max 30fps@1080P
- Easy-to-install eyeball
- Switchable CVI/CVBS/AHD/TVI
- 2.8mm fixed focal lens
- 98 feet (30 meters) IR range, Smart IR
- IP67, DC12V
- DIP Function, WIRELESS AP

Specifications
- Image Sensor: 1/2.7" CMOS
- Effective Pixels: 1920(H)x1080(V)
- Pixel: 2MP
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s
- Minimum Illumination: 0.02Lux/F1.9, 30IRE, 0Lux IR on
- S/N Ratio: >65dB
- IR Distance: 30m (98.4ft)
- IR On/Off Control: Auto/Manual
- IR LEDs: 1
Pan/Tilt/Rotation: Pan 0~360, Tilt 0~78, Rotation 0~360
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8mm
- Max Aperture: F1.9
- Field of View: Diagonal 119, horizontal 101, vertical 54
- Iris Type: Fixed iris
- Close Focus Distance: 0.5m (1.7ft)
- DORI Distance: Detect 38.6m (126.6ft), Observe 15.4m (50.5ft), Recognize 7.7m (25.3ft), Identify 3.9m (12.8ft)
- Day/Night: Auto switch by ICR
- BLC Mode: BLC/HLC/DWDR
- WDR: DWDR
- Gain Control: Auto/Manual
- Noise Reduction: 2D
- White Balance: Auto/Manual
- Smart IR: Yes
- Electronic Defog: Yes
- Mirror: Off/On
- Privacy Masking: Off/On (8 area, rectangle)
- Audio Output: 1 channel built-in mic
- Video Output: Choices of CVI/TVI/AHD/CVBS by one BNC port
- Power Supply: 12V 30% DC
- Power Consumption: Max 2.9W (12V DC, IR on)
- Operating Conditions: -40C~+60C/<95% (non-condensation)
- Storage Conditions: -40C~+60C/<95% (non-condensation)
- Casing: Metal dome+metal cover+plastic decorative ring
- Dimensions: 4.33"x3.47"
- Net Weight: 0.73lb
- Gross Weight: 0.97lb
