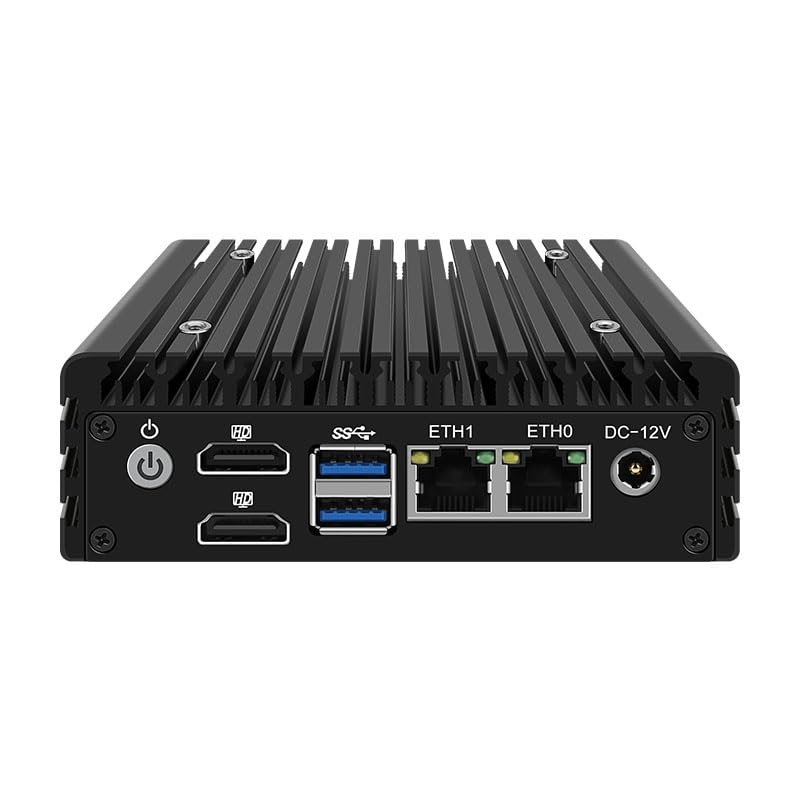

CWWK X86-P3 Mini Fanless Host, Dual Network Port N5105/N5100 Soft Routing,6w Low Power Consumption,Intel I226-V,Suitable for Light Office,Edge Computing. (X86-P3 N5105, 8G RAM 256G SSD)

Description

• Based on Intel 10nm lithography 11th generation Jasper Lake low-power quad-core processor, with 2 Intel i226-V 2.5G network ports onboard
• 1*SO-DIMM DDR4 memory, compatible with 2400/2666/3200MHz, up to 32G, 2*12pin non-standard SATA3.0 sockets support 2.5-inch solid state drive M.2 NVMe 2242 size (PCIe3.0 x4 signal) can support 2280 through expansion board
• 2*USB3.0 built-in 2 sets of USB2.0 can be expanded to the rear bezel through an adapter board, a total of 6 USB;2 HDMI1.4 interfaces support dual display 4K@30Hz, 1 M.2 E key (2230) supports WiFi6/Bluetooth module expansion
• 1 set of COM pin headers and a set of four-in and four-out GPIO pin headers, 1 4-Pin temperature-controlled fan 12V power supply socket, foot cabinet 1.25mm
• Broad X86 ecosystem compatibility with most hardware platforms, popular systems, and software for unparalleled system compatibility,OPNsense/OpenWrt/Unbutun/windows /ESXI/Linux...
• Suitable for computer enthusiasts DIY projects, light office use, software routing, virtualization, edge computing, small-scale NAS, and running industry-specific software applications

Almost X86 hardware platforms can directly use most of the popular systems and tool software, so X86 has advantages in system compatibility; widely cited: computer enthusiast DIY, light office, soft routing, virtualization, edge computing, Small NAS, industry software running carrier, smart home, smart hardware, smart robots, industrial automation

CPU: N5100|N5105
RAM: 1*SO-DIMM DDR4 2933 compatible with 2400/2666/3200MHz
SSD: 1*M.2 NVMe 2242 size (PCIe3.0x4 signal), 2*SATA3.0 (non-standard socket)
Graphics card:Intel UHD Graphics
Display: 2*HDMI 1.4
Network card: 2*Intel i226-V 2.5 network card
WiFi: 1* M.2 E key(2230) supports WiFi6/Bluetooth module
USB: 2*USB3.0|Built-in 2 sets of USB2.0 can be extended to the panel
Heat dissipation: copper block thermal conductive aluminum shell passive heat dissipation
BIOS: AMI EFI BIOS supports incoming calls, watchdog, GPIO, PXE
Power consumption: 15W
Power supply: DC-12V
Chassis: aluminum alloy material
Expansion pin header: 2*USB pin header, 1*GPIO pin, 1*COM pin, 1*CLP_COMS pin
Size: 100mm(length)*112mm(width)*36.3mm(height)
Color: cool black, iron gray (no note on color selection, random color)
Installation method: Desktop type (you can contact customer service to purchase additional wall hangings)
Working environment: -0C~+70C, relative humidity 5%-85%
