CWWK Mini PC, Intel N100 4(Threads:4)/i3-N305 8(Threads:8) CPU, Up to 3.8GHz, 6M Cache, Intel UHD Graphics, DDR5 RAM, M.2 NVMe SSD, Intel i226-V (:CW-X86-P5(N305), Barebone)

Description

Specification:
Model:CW-X86-P5(N100)/CW-X86-P5(N305)
CPU:Intel N100/Intel i3-N305
Main frequency: 6M Cache, Up to 3.40GHz/6M Cache, Up to 3.80GHz
Core:4(Threads:4)/ 8(Threads:8)
Network card: Intel i226-V
Memory: SO-DIMM DDR5
Storage:M.2 NVMe 2242/2280
Graphics card: Intel UHD Graphics 24EU
Display: HDMI2.0 4K@60Hz
Power consumption: 6W
Power supply method: DC-IN 12V
Motherboard size: 90mm X 90mm
Working temperature:-10C~70C
Working environment: 5%-90% relative temperature, no condensation
Chassis: aluminum alloy material
Color: black/grey
BIOS: AMI BIOS supports network boot (PXE), wake-on-LAN (WOL), auto-start on incoming calls, GPIO

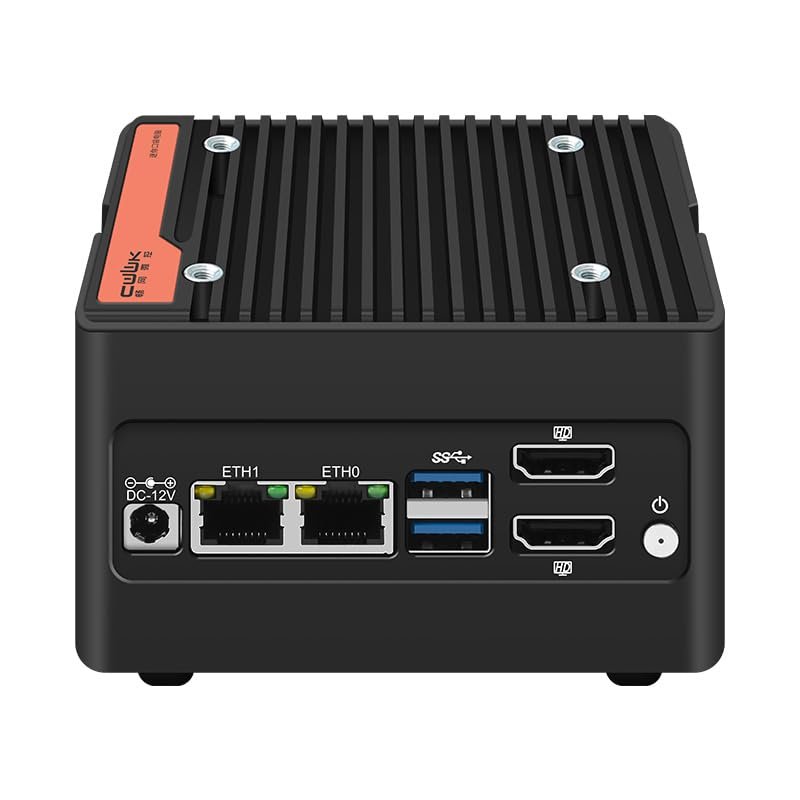

Panel I/O: 1x DC_IN power supply interface, 2x LAN interface, 2x HDMI interface, 1x double-layer USB3.2 interface, 1x PWR_BTN button
Onboard pins: 1x 10pin GPIO interface (four in and four out), 2x CPU FAN (4pin 12V power supply with temperature control), 1x COM pin, 2x USB2.0 pin, 1x power-on jumper

If you have any questions on CWWK Firewall mini pc, feel free to contact us . We offered 12 Months warranty for it and WE'LL REPLY YOUR Quesstions within 24 hours(during Working Days).
