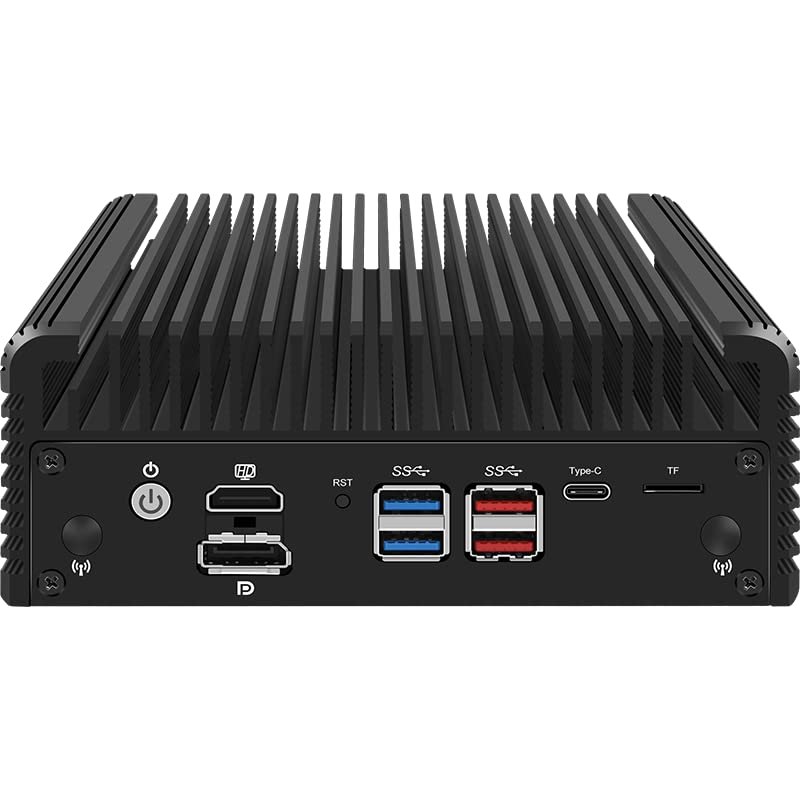

CWWK Micro Firewall Appliance 12th Intel Alder Lake core i3-1215U/i5-1235U/i7-1265U/Pentium Gold 8050, Fanless Mini PC,6X Intel I226-V LAN|2 x USB3.2|M.2 NVMe x4 (i7-1265U, 32G RAM 1TB SSD)

Description

• Using Intel's 12th generation low-power Alder Lake Core i3(6C/8T,Up to 4.4GHz)/i5(10C/12T,Up to 4.4GHz)/i7(10C/12T,Up to 4.7GHz)/Pentium Gold 8505(5C/6T,Up to 4.7GHz) processor
• 1*M.2 NVMe x4 signal socket, supports 2280 size solid-state drives, 1*M.2 WiFi slot supports expansion to NVMe hard drive signals
• Onboard 2*SATA III (6Gb/s) non-standard 12Pin hard drive sockets, dual-channel SO-DDR4 2400/2666/3200MHz Max 64GB, 6*Intel i226-V 2.5G network card
• HDMI 1.4 interface, maximum support 3840x2160@60Hz display, DP1.4a interface, maximum support 7680x4320@60Hz display, Type-C supports data transmission, connects to monitor 3840*2160 @60Hz display
• 2*USB3.0/2*USB3.2 Gen2x1 (10Gb/s) backward compatible, TF card socket supports data storage or system boot, M.2 The WiFi port supports WiFi6 wireless receiving module.
• Big core + small core architecture, the processor's basic TDP power consumption is only 15W, and the DC 12-19V wide voltage power supply allows the machine to fully exert its performance
• If you have any questions before or after purchase, you can contact CWWK customer service to solve them (such as operating system installation/driver/BIOS update, etc.).

CPU: Intel Pentium Gold 8505/Intel core i3-1215U/Intel core i5 1235U/Intel core i7-1265U
RAM: 1xM.2 NVMe x4, 2xSATA3.0 non-standard socket
Graphics card: Intel UHD Graphics/Intel Iris Xe Graphics/Intel Iris Xe Graphics
Display: HDMI1.4 supports 4096x2304 @60Hz display
DP1.4a supports 7680x4320 @60Hz display
Type-C supports 4096x2304 @60Hz display
Network card: 6x Intel i226-V 2.5G network card
USB: 2x USB3.0/ 2x USB3.2
Cooling: No fan, two copper tubes for heat conduction and aluminum shell for passive cooling
BIOS: AMI EFI BIOS Supports automatic start-up upon incoming call, GPIO, watchdog, PXE, network wake-up
Power consumption: 15W (basic power consumption), 55W (turbo power consumption)
Power supply: DC (55*25) 12~19V wide voltage 4Pin ATX Power Connector
Chassis: Aluminum alloy
Expansion pin header: 1x 4Pin FanCPU fan pin header, 1x serial port pin header, 1x USB pin header
Expandable: M.2 WiFi supports expansion to NVMe signal
Size: 178.3mm (length) x 145.4mm (width) x 55mm (height)
Color: Iron gray/black
Installation method: desktop, wall-mounted (contact customer service to purchase additional wall-mounted parts)
Working environment: -0C~+70C Relative humidity 5%-85%
