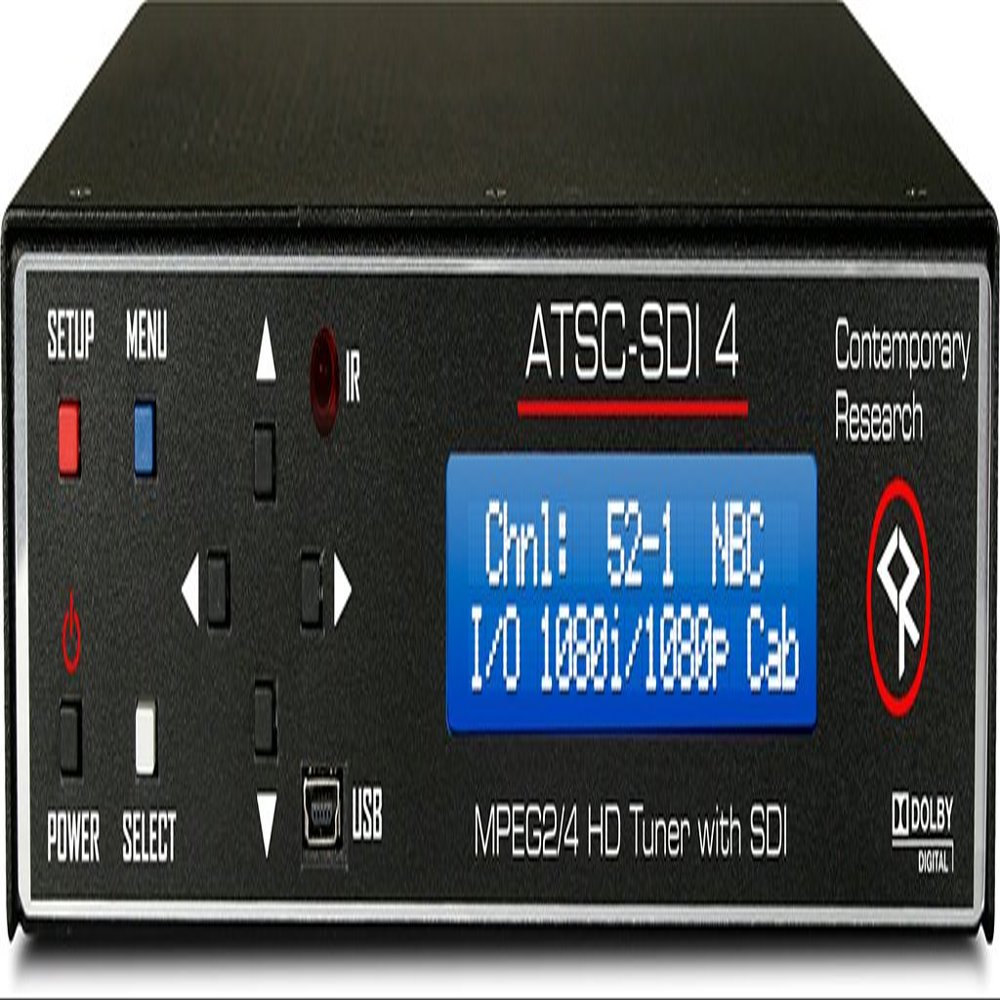

ATSC-SDI 4i HDTV Tuner

Description

• Handles analog and digital channels in ATSC, clear QAM, and NTSC
• Deciphers MPEG2 and H.264 digital channels up to 1080p 60Hz
• SDI Output Supports SD/HD/3G
• HDMI Output Type A, Version 1.3
• SDI and HDMI output resolutions: 480i, 720p, 1080i, and 1080p, or Auto
• All outputs function simultaneously
• 1080p fixed at 60Hz, 1080i and 720p selectable at 60 or 59.94Hz
• Transmits IPTV stream from received digital channel
• Coaxial and optical S/PDIF digital audio outputs
• Supports Dolby Audio, PCM, or Variable PCM audio formats
• Front-panel and on-screen menus for tuner setup
• Web pages for remote setup and configuration
• Decodes analog and digital closed captioning
• Passes through 608 and 708 closed caption data on SDI output
• Rack-mountable, two across in 1RU

The ATSC-SDI 4 is the first HDTV Tuner that features a native HD-SDI port, as well as MPEG2 and MPEG4 decoding. It is controllable via RS-232, IP, and IR commands. An onboard Web page enables remote Web control. A new menu-driven display simplifies setup, and a front-panel USB port makes firmware updates a snap. The new compact enclosure allows mounting of two tuners in a single rack space.
