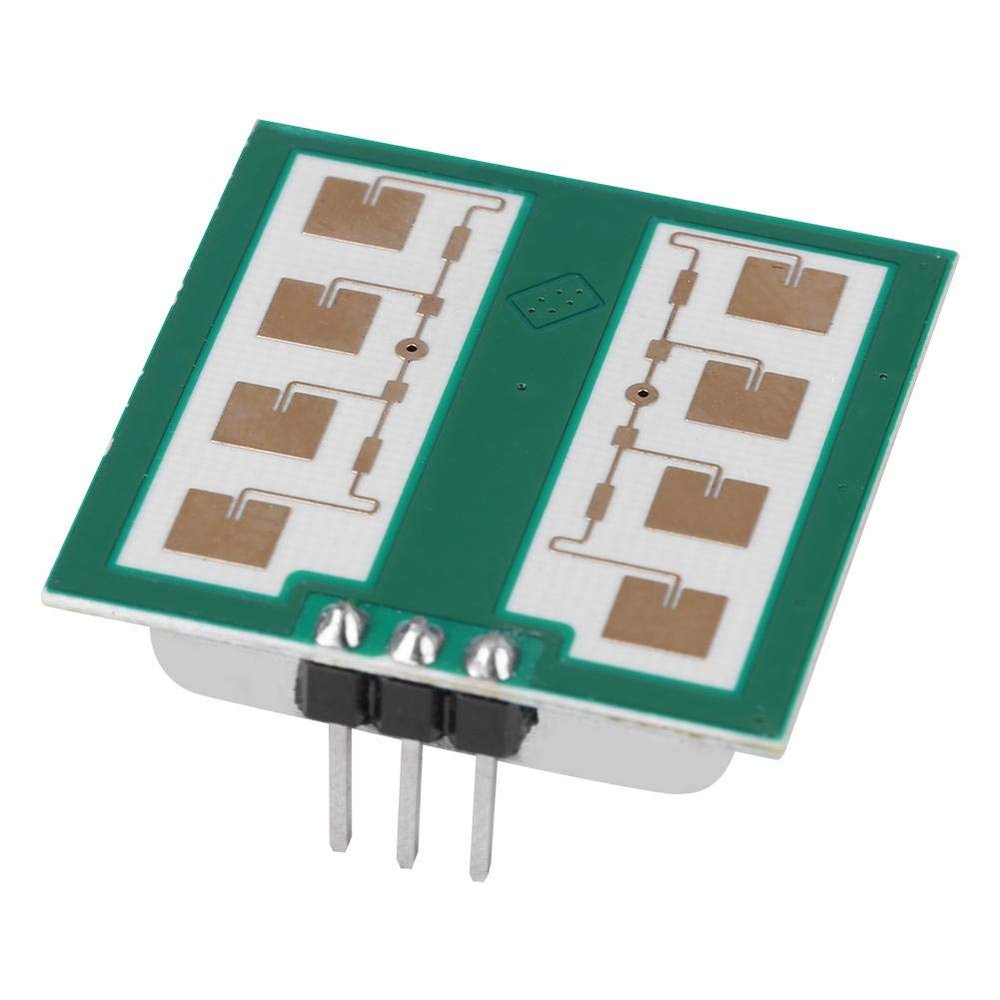

CDM324 Microwave Motion Sensor Module Microwave Sensor Module 24GHz 15m Single Channel Switch Intelligent Sensor Module

Description

• CONTACTLESS INDUCTION: This Microwave Module takes non-contact detection and moving object detecting, with the use of doppler technology, has achieved stronger penetrating detection capability than traditional infrared feeling PIR.
• MULTIPLE PARAMETERS: The Intelligent Sensor Module has eqipped advanced low consumption PHEMT oscillator, can provide various frequency range standards of -UK,-F, and the operating temperature is between -20~60.
• MANY ADVANTAGES: The Microwave module has independent transmitting and receiving route, which takes many advantages, such as high sensitivity, long sensing distance, wide sensing angle, high reliability, wide range of operating voltage.
• GREAT PERFORMANCE: This Intelligent Sensor Module operates in single channel and the operating distance is 15m, with high sensibility, high flexibility and low cost, which will not influenced by temperature, humidity, noise, air , dust, ray etc, adaptive to terrible environment.
• WIDELY APPLICATION: This Microwave Sensor module can be widely applied in business, industries, word controlling, especially in human body sensing lighting system and anti-theft alarm system.

If you are looking for a Microwave Module with excellent performance, we recommend this CDM324Radar Induction Microwave Module to you, and we believe we can bring you a good use experience. Features: Non-contact detection, moving object detecting. This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc. Provide various frequency range standards: -UK,-F. Advanced low consumption PHEMT oscillator. Independent transmitting and receiving route, can get the big gain. High sensibility, high flexibility, low cost, operating distance is 15m. Single channel operation. Specifications: Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz Output Power:16dbm (typ) Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB Operating Temperature:-20~60 Operating Current: typ:30MA, max:40MA Operating Voltage: typ:5.5V Pulse Width: typ:10US IF Output:-300~300MV Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch Weight: 5g Package Included: 1 x Microwave Body Induction Module
