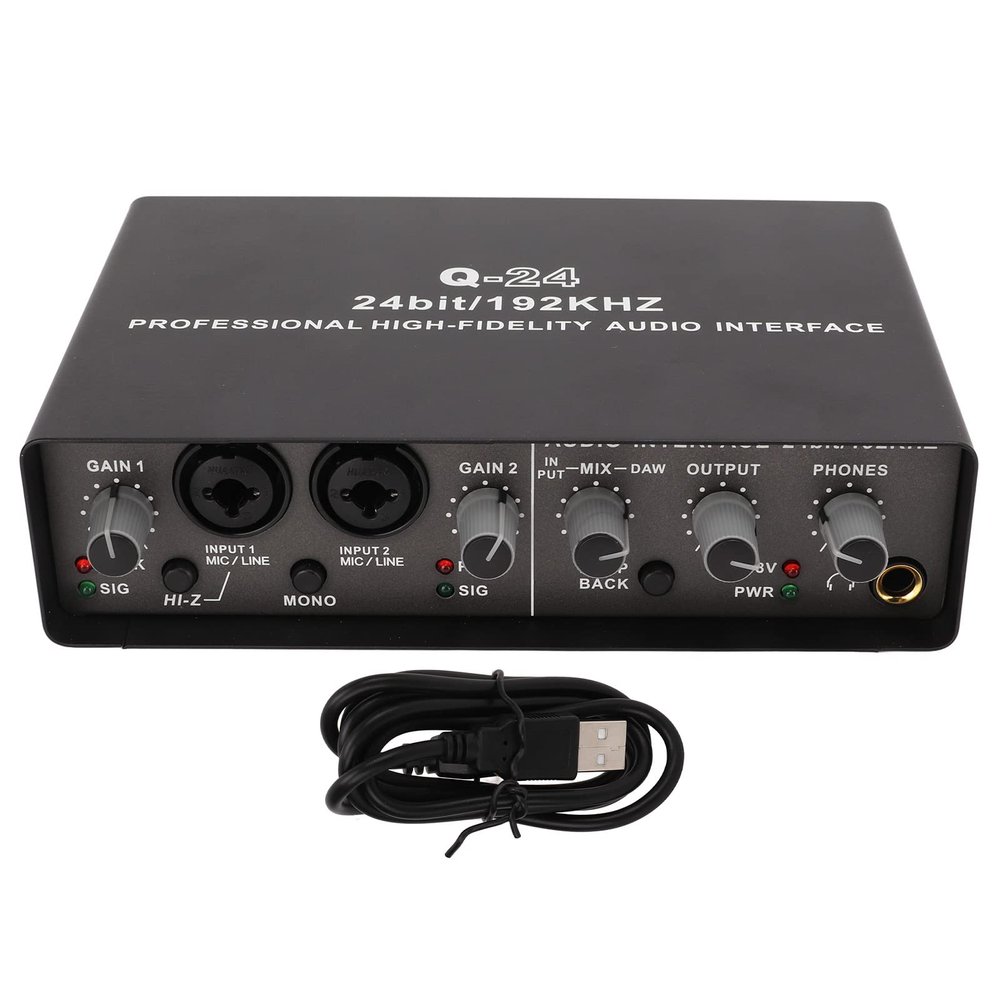

CCYLEZ Sound CardSound Card USB External Karaoke Recording Mobile Audio Mixer PC Portable Computer Recording USB External Sound Card for Live Streaming Recording and Gaming

Description

• High Resolution: Support 24 BIT 192KHZ high definition sound quality, so that the hearing effect is clear, the details are full and low noise, the built in AD,DA converter achieves high resolution, and the sampling rate can be flexibly switched to 44.1K, 48K, 88.2K, 96K, 176.4K, 192KHZ.
• Internal Recording and Cover Singing: The audio input from the streaming media can be mixed to realize synchronous data to the Internet, and the sound card internal recording and cover singing and live K song can be realized.
• High Speed USB2.0 Connection: Drive connection to electricity through USB2.0 cable, before recording and power supply connection for IOS table, it needs to be powered by 5V Micro USB port to become a device for mobile music production and performance.
• Support Audio Input: front output interface and output interface, can output to the input interface of the audio chin device at the same time, support audio input, different plugs need to be equipped with additional adapters.
• Support Functions: Recording sound card, supports simultaneous input and playback of two channel microphones, lines, and musical instruments, and has independent headphone, speaker output control, recording sampling rate and frequency up to 24Bit 192Khz, very suitable for mobile recording production.

How to Use:
Power supply can be connected to PC DC5V IN to provide connection to for OS X and PC computers and their for IOS devices

Specification:
Item Type: USB Live Sound Card
Material: Metal
MIC INPUT 1 to 2(Balanced)
Frequency Response: 1/1dB, 20Hz to 20kHz
Dynamic Range: 82dB, A weighted THD+N0.03%, 1kHz
Maximum Input : +6dBu
Input Impedance: 4k
Gain Range: +3dB+60dB H Z INPUT2 (Unbalanced)
Maximum Input : +3.0dBV
Input Impedance: 1M
Gain Range: 0dB to +40dB
LINE INPUT 1/2 (Balanced)
Maximum Input : +10dBu
Input Impedance: 18.5k
Gain Range: 10dB to +40dB
MAIN OUTPUT (Impedance Balance)
Frequency Response: 1/1dB, 20Hz to 20kHz
Dynamic Range: 82dB, A weighted
THD+N 0.03%, 1kHz,
Maximum Output : +6dBu
Output Impedance: 100
PHONES
Maximum Output : 15mW+15mW, 40
USB
Technical Specifications Full Speed: USB2.0, 24 bit, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
XLR INPUT
Polarity: 1 Ground 2: Hot (+) 3: Cold ()
Power Requirements: Greater than 5W


Package List:
1 x Sound Card
1 x User Manual
1 x Power Cord
