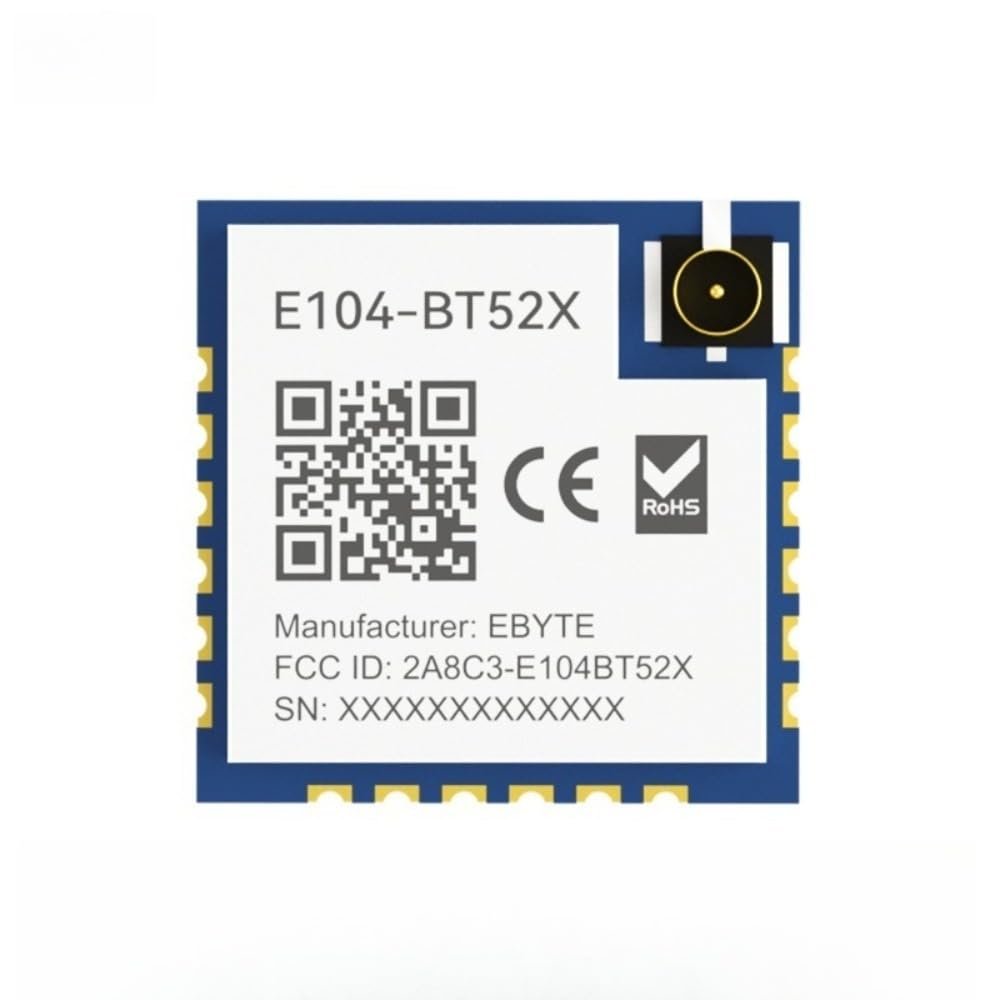

Bluetooth to Serial Port Module DA14531 E104-BT52X Lower Power Long Distance 130m Small Size MAC Serial Wake Up

Description

• E104-BT52 is a serial to BLE Bluetooth master-slave integrated module based on BLE 5.0. It is small in size and low in power consumption, working at 2.4GHz
• E104-BT52 is based on the dialog DA14531 chip. The module uses general AT commands to set parameters, and the operation is simple and fast. The module only supports Bluetooth master, slave and observer modes
• E104-BT52 functionally supports low-power advertising, data transparent transmission, and air configuration. Modules can be widely used in smart wear, home automation, home security, personal health care, smart home appliances, accessories and remote controls, automobiles, lighting, industrial Internet, smart data collection, smart control and other fields. The maximum baud rate is 460800bps for data transmission.
• Applications-Wireless meter reading and wireless sensing;Smart home;Industrial remote control and telemetry;Intelligent buildings, intelligent buildings;Automatic data collection;Health sensor;Smart wearable devices;Intelligent robot;Wireless sensing;Electronic label; Intelligent control

Feature
BLE 5.0 protocol
Adjustable Bluetooth package length;
Two working modes: configuration and transparent transmission;
Automatic advertising and automatic connection after startup;
IBeacon and ordinary advertising switching;
Supports serial port wake-up;
Good for MAC binding connection, the maximum binding number is 3 devices;
Serial port transparent and format transmission;
Multiple serial port modes and baud rates;
Custom 16-bit UUID and 128-bit UUID available;
Support PCB on-board antenna (E104-BT52) and 3rd generation IPEX (E104-BT52X)
Supports Bluetooth parameter air configuration;
The maximum communication distance:
E104-BT52X
130m (@2.5dBm, 1Mbps);
Ultra-low power sleep, simultaneous advertising;
Multiple masters and multiple slaves, and the maximum connection data is 2 slaves;
Supports transmit power modification. The maximum transmit power is 2.5dBm;
With sniffing function
