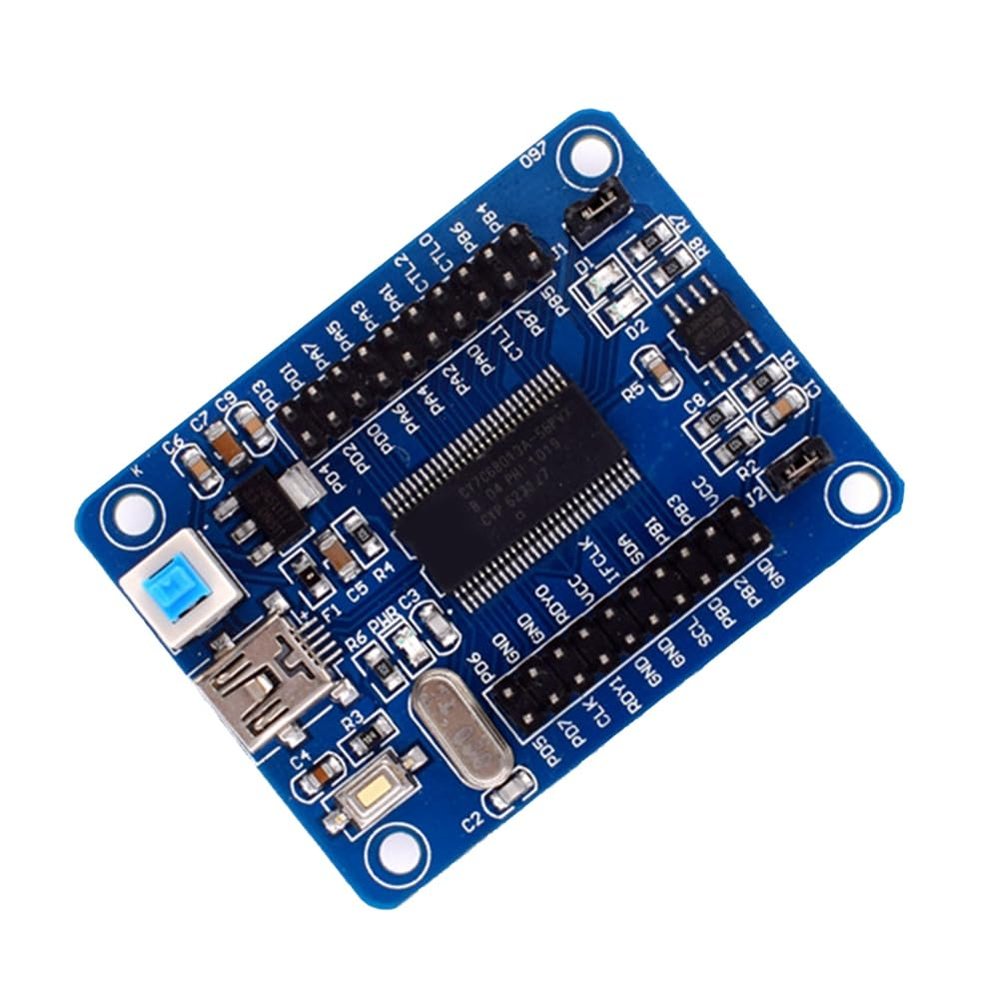

Beuiouer EZ-USB FX2LP CY7C68013A USB Core Board Development Board Logic Analyzer Multifunction Convenience Module

Description

• Features: 1. Using CY7c68013A-56 Chip: Low-Power Version, Enhanced 51 Cores, 16KB Program Data Area, Main Frequency 48Mhz, 480Mbps High-Speed Transmission Protocol Standard, Compliant With USB2.0 Specification, And Backward Compatible With Usb1.1.
• 2. Firmware Eeprom: A Complete In-System Programming Solution. Download The Firmware Program Directly With A Usb Cable. The Onboard Provides 16k (24lc128) Large-Capacity Program Memory (Eeprom), Which Is Used To Store Vid/ And Usb Firmware To Meet The Program Space Of CY7C68013A. Need.
• 4. With The Corresponding Firmware, The Functions Of The Logic Analyzer Can Be Realized Through This Core Board.
• 3. All Gpios Are Led Out Through 2.54mm Standard Pin Headers, Which Greatly Facilitates Learners To Expand Their By Themselves.
• 5. Provide Schematic Diagrams And Related Source Code In Pdf Format

Beuiouer Description:
1. Model: CY7C68013A Core Board
Material: PCB
colour: As shown

Package Contents:
1 x Core Development Board Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
