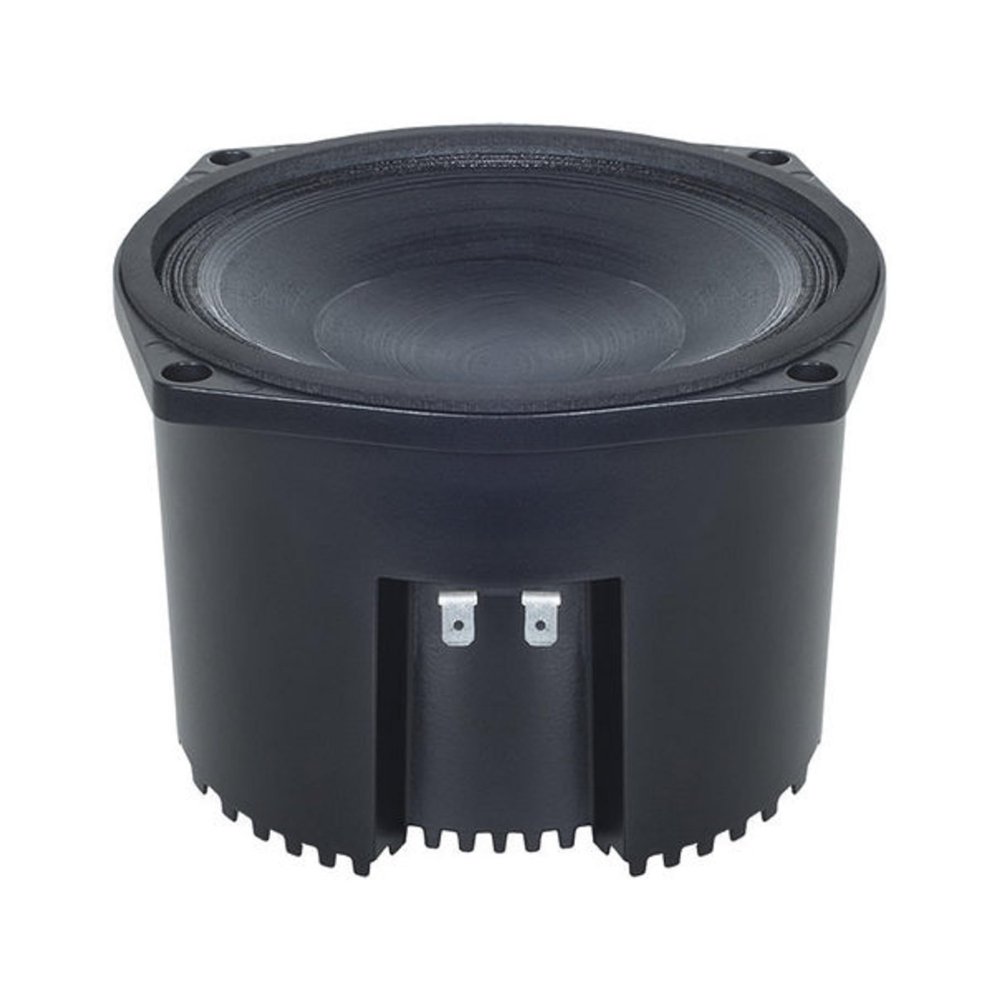

B&C Speakers 6NSM51-8 LF Drivers 6-inch ND Sealed Mid Midranges 8-Ohm 250 Watt RMS / 500 Watt Max Pro Audio Component Speaker Driver for Motorcycle Car

Description

• HIGHLIGHTS | 500 W continuous program power capacity | 51 mm (2 in) aluminium voice coil | 300 - 6000 Hz response | 100 dB sensitivity | Ideal for Direct Radiation and Horn Loaded Midrange application | Aluminium demodulating ring for Extremely Low Distortion"
• SPECIFICATIONS : || Nominal Diameter : 170 mm (6.5 in) | Nominal Impedance : 8 | Minimum Impedance : 6.6 | Nominal Power Handling1 : 250 W | Continuous power handling2 : 500 W | Sensitivity (1W/1m)3 : 100.0 dB | Frequency Range : 300 - 6000 Hz | Voice Coil Diameter : 51 mm (2.0 in) | Winding Material : Aluminium | Former Material : Glass Fibre | Winding Depth : 8.5 mm (0.33 in) | Magnetic Gap Depth : 6.0 mm (0.24 in) | Flux Density : 1.6 T | "
• DESIGN : || Surround Shape : Triple Roll | Cone Shape : Radial | Magnet Material : Neodymium Ring | Spider : Single | Pole Design : T-Pole | Woofer Cone Treatment : WP Waterproof Front Side | "
• MOUNTING AND SHIPPING INFO : | Overall Diameter : 187 mm (7.36 in) | Bolt Circle Diameter : 172 mm (6.77 in) | Baffle Cutout Diameter : 151.0 mm (5.94 in) | Depth : 113 mm (4.45 in) | Flange and Gasket Thickness : 11 mm (0.43 in) | Air Volume Occupied by Driver : 2.0 dm3 (0.07 ft3) | Net Weight : 2.7 kg (5.95 lb) | Shipping Units : 1 | Shipping Weight : 2.95 kg (6.5 lb) | Shipping Box : 221x214x130 mm (8.70x8.43x5.12 in) | "
• For simplified cabinet assembly and efficient thermal transfer to the air, our NS M series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.

18 Sound 6ND430 LF Drivers 6-inch NEO Neodymium Woofer 8Ohm Aluminum Voice Coil 260 Watts Compact 2-Way Multiway System 63-5500H || 92,5 dB SPL 1W / 1m average sensitivity 45 mm (1,77 in) aluminum voice coil || 200 W AES power handling || Neodymium motor assembly || Weather protected cone || Improved heat dissipation via unique basket design || Ideal for compact two way and multiway systems || || The 6ND430 is a 6 inch neodymium woofer designed for low frequency reproduction in 2-way systems or multiway systems where both low weight and high intelligibility are required. The speaker has been specifically designed for compact reflex enclosures where high quality low-bass and mid frequencies are required such as studio monitoring applications. || It is also currently used in line array or multiway systems with excellent results. The extremely powerful external neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. The levels of force factor and power handling are, as a consequence, at a top professional level with an optimum power to weight ratio. || A consistent heat transfer is guaranteed by the encapsulation of the magnetic structure in the interior of the basket, offering a large contact space between the back plate and the dissipating structure. Particular effort was given to the surround shape and material design in order to minimize the resonances on mid range frequencies. The new design, realized with specified rubber based material density, offers a consistent dampening to typical bell modes. || The 45 mm voice coil is made from a light-weight aluminum wire and assures linearity and high power handling. A proprietary humidity-block cone treatment makes the transducer suitable for outdoor use in adverse weather conditions. In addition, a special coating applied to both the top and back plates makes the 6ND430 far more resistant to the corrosive effects of salts and oxidization.
