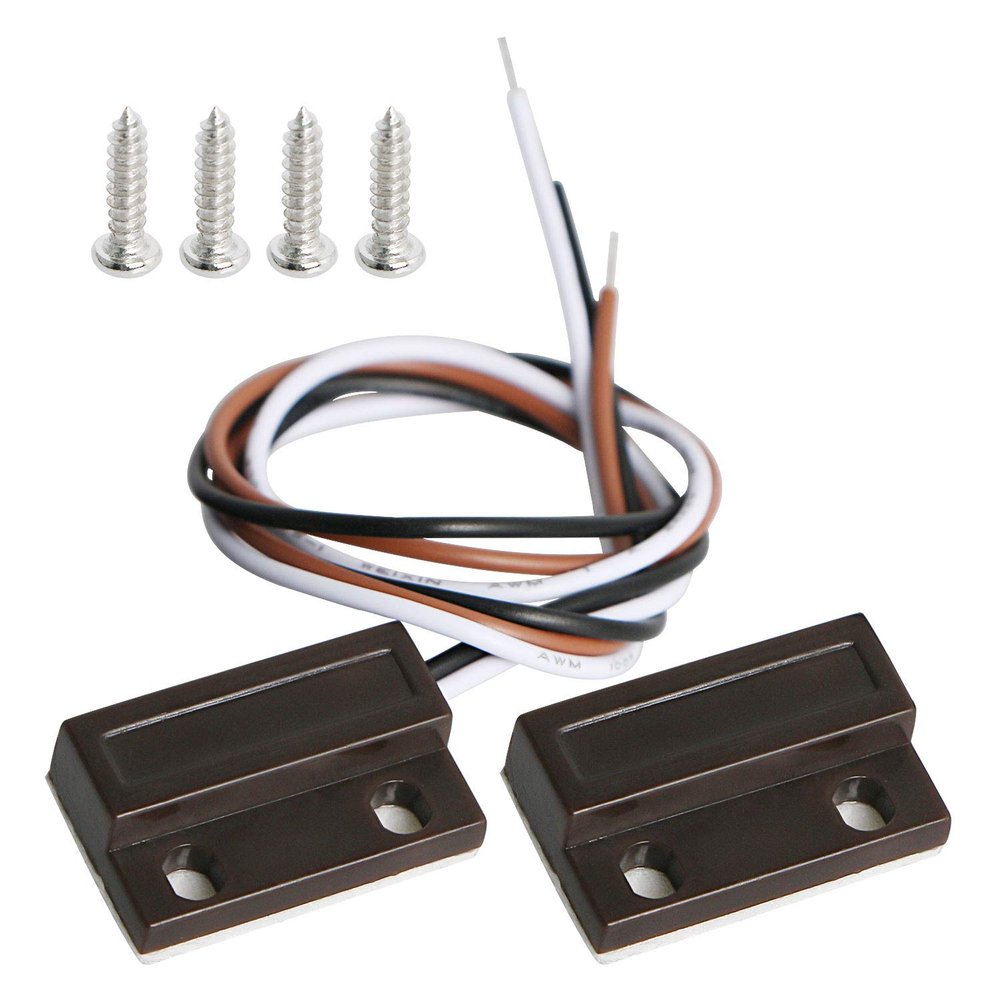

Aoje-Link RC-39 NC & NO Embedded Magnetic Gap Switch Door and Window Sensor for Home Security Access Control and Burglar Alarm Systems Black 1Sets

Description

• Product Content: 1 x RC-39 Embedded magnetic contact; Color: Black, Material: ABS.
• Size: 23mm x 16mm x 6mm/0.91" x 0.63 x 0.24" (L*W*H).
• Contact Type: NC/NO, Actuation Distance: 15-25mm, Max Voltage: 100V, Max Current:0.5A.
• Door contact sensors used with commercial or residential access systems and all security access and burglar alarm system.
• Adopt double-sided tape design, with mounting screws, two kinds of installation options for easy installation.

Magnetic Reed Switch Alarm Surface Mount Wired Contact Sensor Connect to the alarm.
1.By screws or double-sided tapes to install, Anti-fire ABS.

2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Switch Type: NC/NO, NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). NO means Normally Open:when the magnet separate, the circuit is not conductive( light on );When the magnet together, the circuit is conductive ( light off ).
4.Work as an anti-theft alarm, ideal for wood door and window.

Specification:
Model: RC-39
Material: ABS
Color: Black
Max Power: 10W
Max Voltage: 100V
Max Current: 0.5A
Min Temperature: -22
Max Temperature: 140
Actuation Distance: 15-25mm
Contact Type: NC/NO
Size(Approx): 23 x 16 x 6mm(L*W*H)

Package Content:
1pair x Magnetic Door Switch.

Note:
1: Please install on the back of the door, The door and window magnet should be installed at the closed position of the door/window/drawer.

2: The magnet part is installed on the movable door and window. The switch part is installed on the fixed door and window frame. The switch part and the magnet part should be aligned as much as possible.

3: The door magnet should be away from the strong magnetic field interference source such as a transformer. Otherwise, the working characteristics of the door magnet will be changed and possible wrong actions.

4: Door magnetic can only provide switching signal, can not be directly loaded, need to be connected with the power supply or lamps and lanterns into a set of system.
