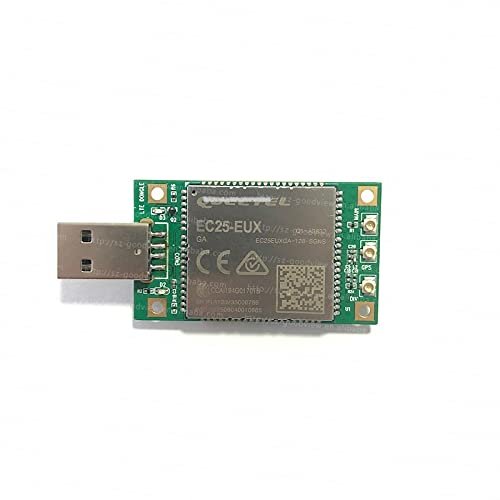

Anncus EC25-E EC25-EUX EC25-EC EC25-J EC25-V EC25-MX USB DONGLE 4g LTE Cat4 - (Color: A)

Description

• Color: A
• Origin: CN(Origin)
• Condition: New
• Type: Drive IC

EC25-E EC25-EUX EC25-EC EC25-J EC25-V EC25-MX USB DONGLE LTE Cat4
This product has three functions. 1. It can be also used as a development board, if you starting from the sample can also recommend the development board to you.
2. It can use communication and serial communication (dongle) similar to DTU hardware, you need to do their own software.
3. USB 4G Dongle can also support 4G Internet access devices. It is a kind of Internet access device that can insert SIM card(with the card and the antenna).
Support USB / UART transparent transmission two working modes
USB plug and play
Ultra small volume
Industrial grade operating temperature, -40 to 85 degrees harsh environment test
Support cloud platform management devices and traffic
4G full Netcom, fully compatible with the three major carrier networks
Hardware Configuration
Size: 30 x 67mm
Memory: 128MB/256MB
Storage space: 128MB/256MB
USB: 1 x USB 2.0
Indicator: Power, operation, network registration status
Positioning: Support indoor and outdoor base station positioning
4G/3G Antenna: 2 X 4G
Slot: USIM/SIM Card Slot*1
Transmission bus: 1 x UART (serial port transparent transmission)
Power input: 5V USB 5V 2.0 interface
Application direction
IPC
Unmanned self-service equipment
PC Internet
Industrial computer
Support area
Europe, the Middle East, Thailand, Africa
product name
4G Dongle
module
EC25-EUX
Power input
5V
size(mm)
30x67mm
USB
1USB2.0
Module parameter
LTE
FDD-LTE:B1/B3/B7/B8/B20/B28A
TDD-LTE:B38/B40/B41
3G
WCDMA:B1/B8
GSM / EDGE
GSM: B2/B3/B5/B8
Related products
European, Middle East, Africa, Korea, Thiland, Korea, Inida
EC25-EU sample
LTE FDD:B1 B2 B3 B5 B7 B8
LTE FDD:B1 B3 B7 B8 B20 B28
LTE FDD:B1 B3 B7 B8 B20 B28
LTE FDD:B1 B3 B7 B8 B20 B28
LTE FDD:B38/B40/B41
LTE FDD:B38/B40/B41
LTE F
