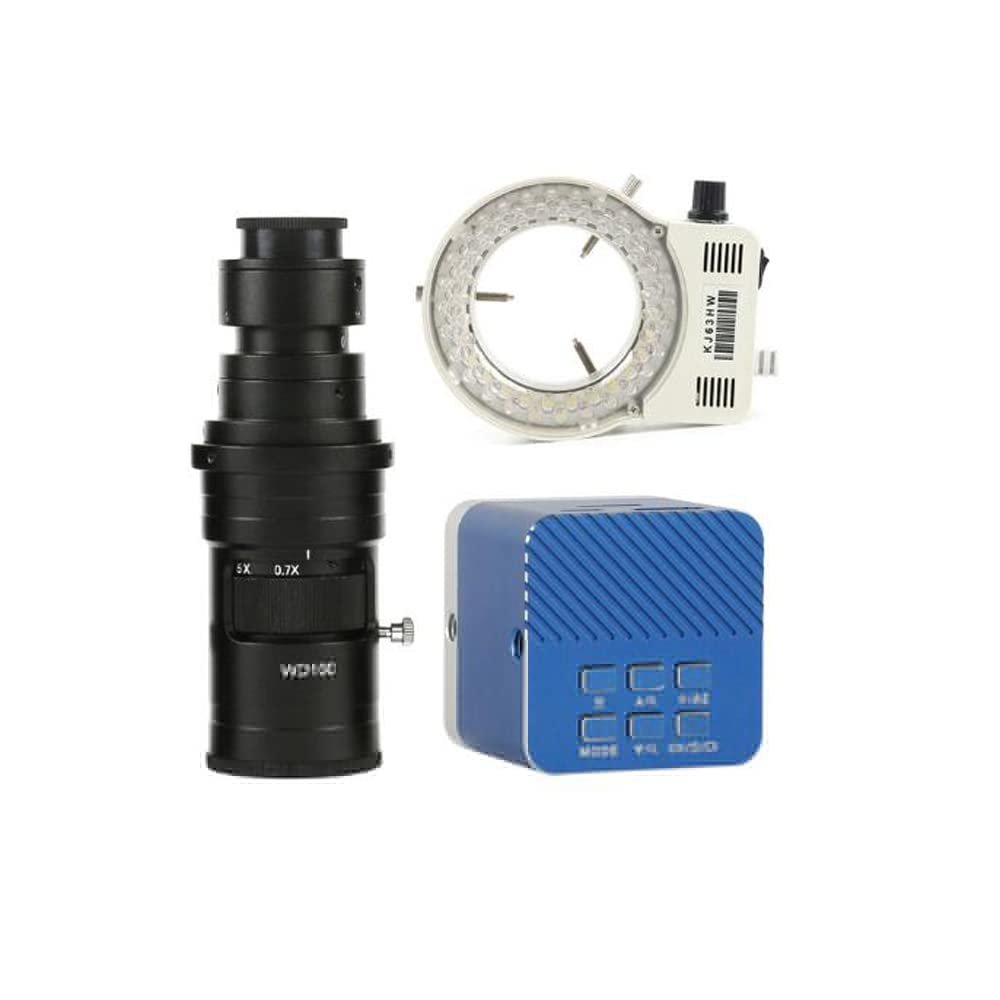

8MP 4K 1080P HDMI PC Industrial Electronic Digital MINI Video Microscope Camera & 200X C-Mount Lens Whit 56-LED Adjustable Ring Light

Description

• 1. Turn on the DC-12V power supply, connect to the monitor, and wait for the screen to appear on the monitor2. Tap the main function menu button on the product3. Press the up and down keys to select the setting function4. Press OK to confirm the desired function5. Press the left and right keys to adjust the required parameters6. Press the main function menu key to return to the setting menu7. When there is no main function menu on the screen, directly press the right button
• to take a photo and save the photo to the TF card8. When there is no main function menu on the screen, first press the left button, then press the right button to record, and then press the right button to stop Video, save the video to TF card9. When there is no main function menu on the screen, press the left button twice, then press the up and down buttons to preview pictures and videosFeature:Sensor size: 1/1.8Pixel size:
• 2.0*2.0mOutput resolution: 3840*2160Frame rate: 3840*2160@30FPS / 1920*1080@30FPS&60FPSImage storage method: TF card + UVCVideo: 3840*2160@30FPSExposure time: 0-33MSExposure: automatic and manualWhite balance: automatic and manualParameter settings: color, mirroring, grid line, scale, etc.PC software: S-EYE2.0Working temperature: 0-60Storage temperature: -20-85Appearance size: 45.5*42*42mmSingle machine weight: 0.11kgPower
• supply: DC 5-12V

200X C-MOUNT Lens:Working distance:100mm -175mmConnector:C mountZoom:continouasly variable zoomObjective Magnification:0.7X - 5X(about 28 - 200X) Eyepiece lens adapter:0.4XFixed position:50mmLocking:0.7X - 5X LockingThread:42mmSize:132mm(L) * 55mm(DIA)C-mount lens: 400g56-LED Lamp:Brightness Adjustable LED Microscope LampMax output: 4.5WBest Working Distance: 20mm-160mmPower input: AC100-AC240V, 50-60HZInstallation interface:58-65mmLight Intensity Adjustment:0-100%Applications: microscope illumination, machine vision system lighting, Eco-photography lighting, Medical photography lighting, instrument lighting,etc.Weight: 260g
