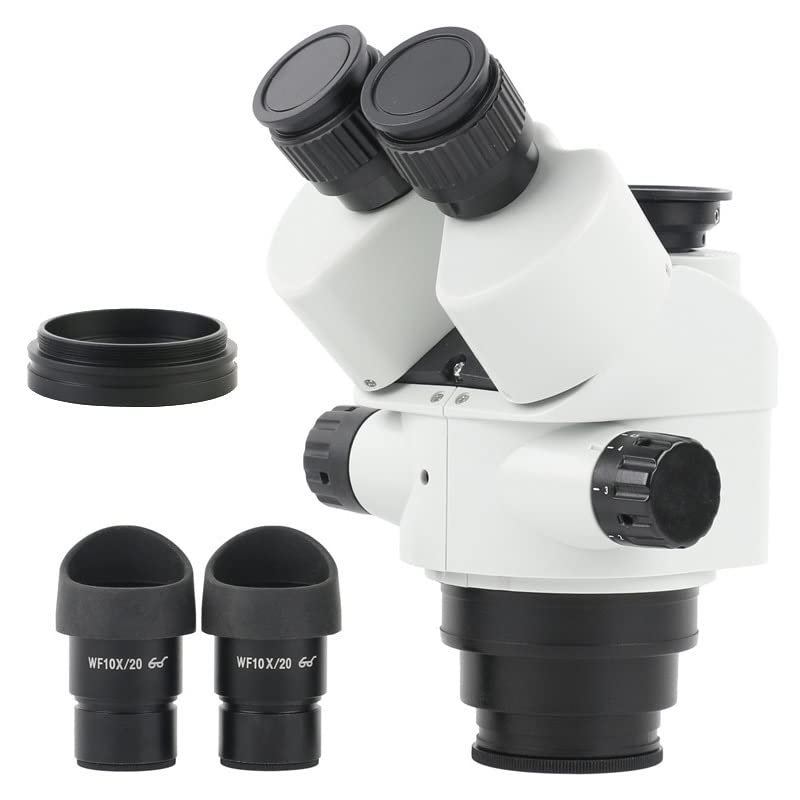

7X-45X 3.5X-90X Zoom Simul Focal Stereo Trinocular Microscope Head Accessories + WF10X/20 Eyepiece for Phone CPU PCB Soldering (Color : with 1.0X)

Description

• Head: 45-degree inclined 360-degree swiveling trinocular simul-focal.
• Eyepiece: 30mm super widefield high-eyepoint WF10X/20; Objective: 0.7-4.5X; Zoom Range: 6.5:1; Trinocular Port: 23mm photo port; Interpupillary Distance: 2-1/8" to 3"(54-76mm).
• Field of View: 1-1/4" (33mm); Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm); Head Mounting Size: 3" (76mm) diameter; Accessory Mounting Size: 1-7/8" (48mm female thread) diameter.

Note: Microscope use 76mm mounting diameter focusing Holder,Mounting thread of the auxiliary objective is 48mm,Use 0.5x or 0.35x C-mount adapter Lens,camera is standard C-mount 25mm.
Stereo microscopes are easy to operate and widely used.

Features:
7X to 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Full Optical Glass Elements
All Metal Mechanical Components
Adjustable Interpupillary Distance

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x Pair of Eye-Guards
1 x Du, st Cover
(Optional)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 0.7X Microscope Auxiliary Objective Lens(Working Distance 120 mm)
1 x 0.75X Microscope Auxiliary Objective Lens(Working Distance 117 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 1.5X Microscope Auxiliary Objective Lens(Working Distance 45 mm)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40
