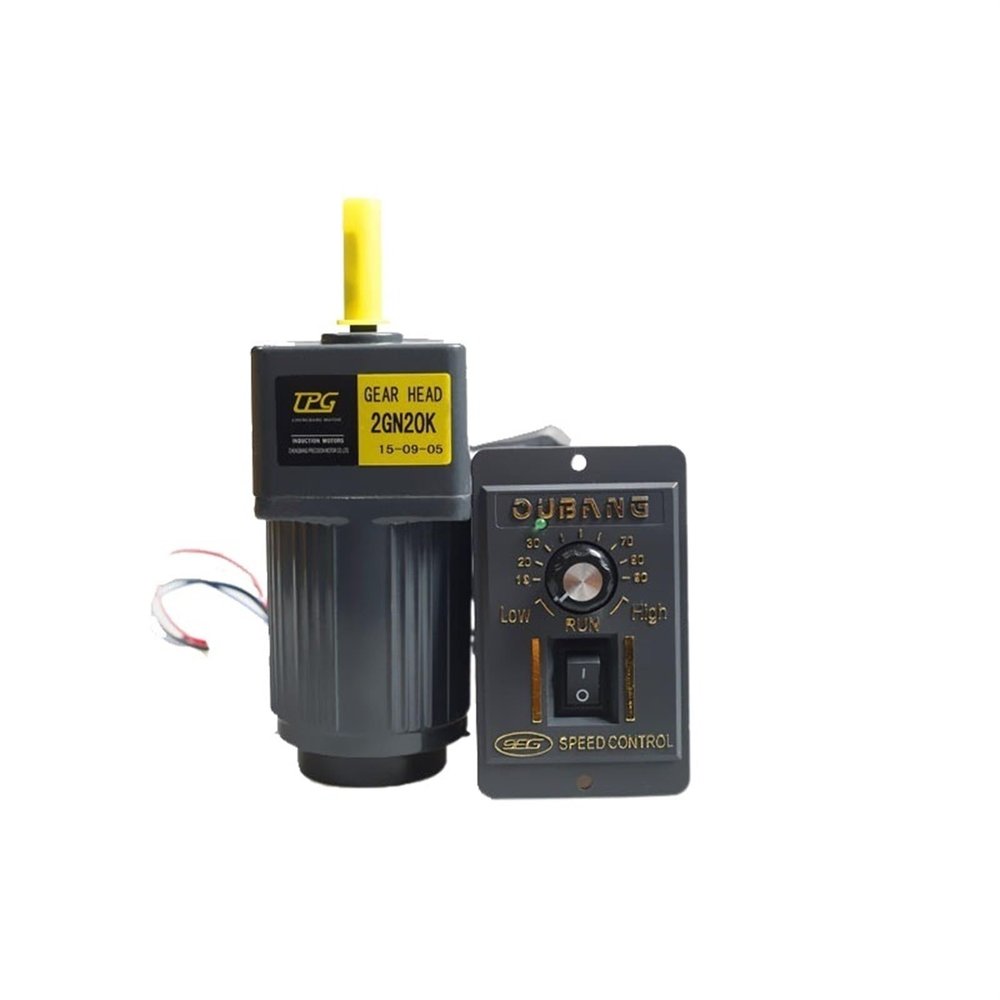

6W 110V AC Gear Electric Motor With Speed Regulator 2IK6RGN-A Adjustable Speed Single Phase Asynchronous High (Size : 0-13.5RPM)

Description

• Motor Drives
• 6W 110V AC Gear Electric Motor With Speed Regulator 2IK6RGN-A Adjustable Speed Single Phase Asynchronous High

Motor Drives
6W 110V AC Gear Electric Motor With Speed Regulator 2IK6RGN-A Adjustable Speed Single Phase Asynchronous High

Model:6W Gear Motor 2IK6RGN-A
Speed ratio: 3k,5K,7.5K,10K,12.5k,15K,18K,20K,25K,30K,36K,
40K,50K,60K,75K,90K,100K,120K,150K,180K,200K
The maximum speed of the motor: 1350rpm
Output speed:
3K(0-450RPM), 5K(0-270RPM), 7.5K(0-180RPM), 10K(0-135RPM),
12.5K(0-108RPM),15K(0-90 RPM),18K(0-75RPM),20K(0-67RPM),
25K(0-54RPM),30K(0-45RPM),36K(0-37RPM),40K(0-33RPM),
50K(0-27RPM),60K(0-22 RPM) 75K(0-18RPM), 90K(0-15RPM),
100K(0-13.5RPM), 120K(0-11RPM)150K(0-9RPM),180K(0-7.5RPM),200K(0-6RPM)
Currently, we configure the default speed regulator for you. If you want another speed regulator, we will modify it according to your needs. In addition, the may change slightly.
Speed Controller Dimensions and wiring Diagram
AC Gear Speed Motor*1With Speed Regulator*1
