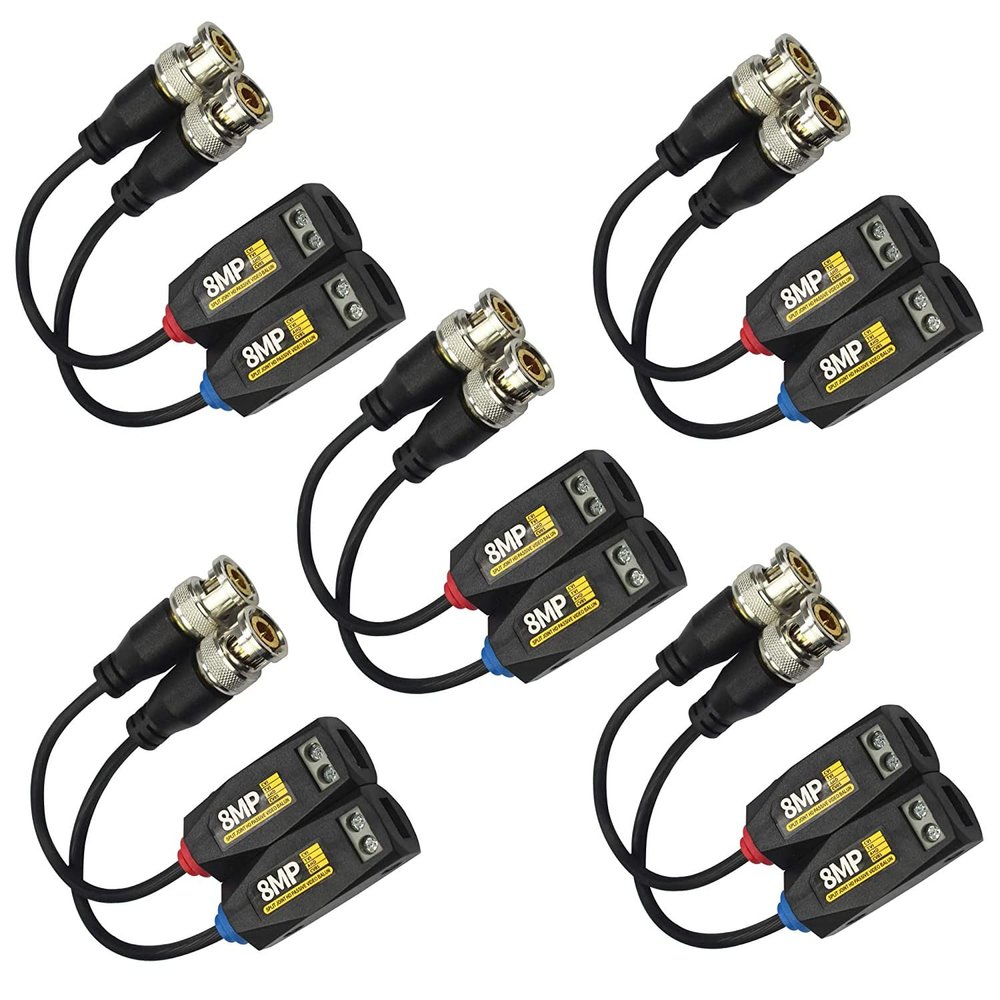

5 Pairs 8MP 4K Passive HD BNC Video Balun Transmission Split Joint Transceiver Transmitter Via UTP RJ45 Cable AHD/TVI/CVI/CVBS Cable Connectors for 720P/960P/1080P/3MP/5MP/8MP Security Analog Cameras

Description

• 8MP/4K HD Video Balun: This is newest design -8MP/4K HD Passive Video Balun Transmission Cable. Supports Up to 8MP AHD Cameras Over 250 meters, CVI cameras over 200 meters, TVI cameras over 150M(Max). Gold Plated BNC is provided with better transmission quality and long-distance HD transmitter. Support 720P/960P/1080P/3MP/5MP/8MP AHD/TVI/CVI/CVBS CCTV Security Cameras
• Video transmission Via UTP CAT5/5E/ 6Only used for Category 5/Category 5E/Category 6 Cable. We provide a specification which has detailed installation steps make the procession of installation simple and convenient.
• Split Jointed Design: You can combine these 8 MP video balun transmitter together by side to side and made a neat line so they are more manageable if more than one video balun is used.
• Package Included: EVERSECU [8MP 4K] HD-CVI/TVI/AHD Video Balun Mini CCTV BNC Passive Video Balun Transceiver 5 Pairs + 1 Year Friendly of Warranty Service.

Features:
-HD CVI/TVI/AHD/CVBS transmission
-Multiple can be used in combination
-Male BNC with extended 140mm mini-coax pigtail
-Two screw terminals connection for UTP cable
-Built-in solid state TVS(Transient Voltage Suppressor) for surge protection
-Wave Filter Design, Anti-Static Design
-Lightning protection design Grade: III
-60 dB crosstalk and noise immunity
-Exceptional interference rejection
-ABS engineering plastic housing

Specification:
Transmission signal: 1 channel
Transmission distance: AHD/CVI: 400M(Max)
TVI:200M(Max)
Category Type: UTP CAT 5/5E/6
Coaxial Video Connector: BNC-M
Twisted-Pair Video Connector: Screw-terminal
Compatible Format: AHD/HDCI/HDTVI/CVBS
Resolution: 720P/960P/1080P/3MP/4MP/8MP
Anti-interference: >60dB
Coaxial Cable Connector:2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector: 2KV(different-code), 4KV(common-code) Per: IEC1000-4-5
Impedance: BNC male 75 Ohms
UTP cable 100 Ohms
