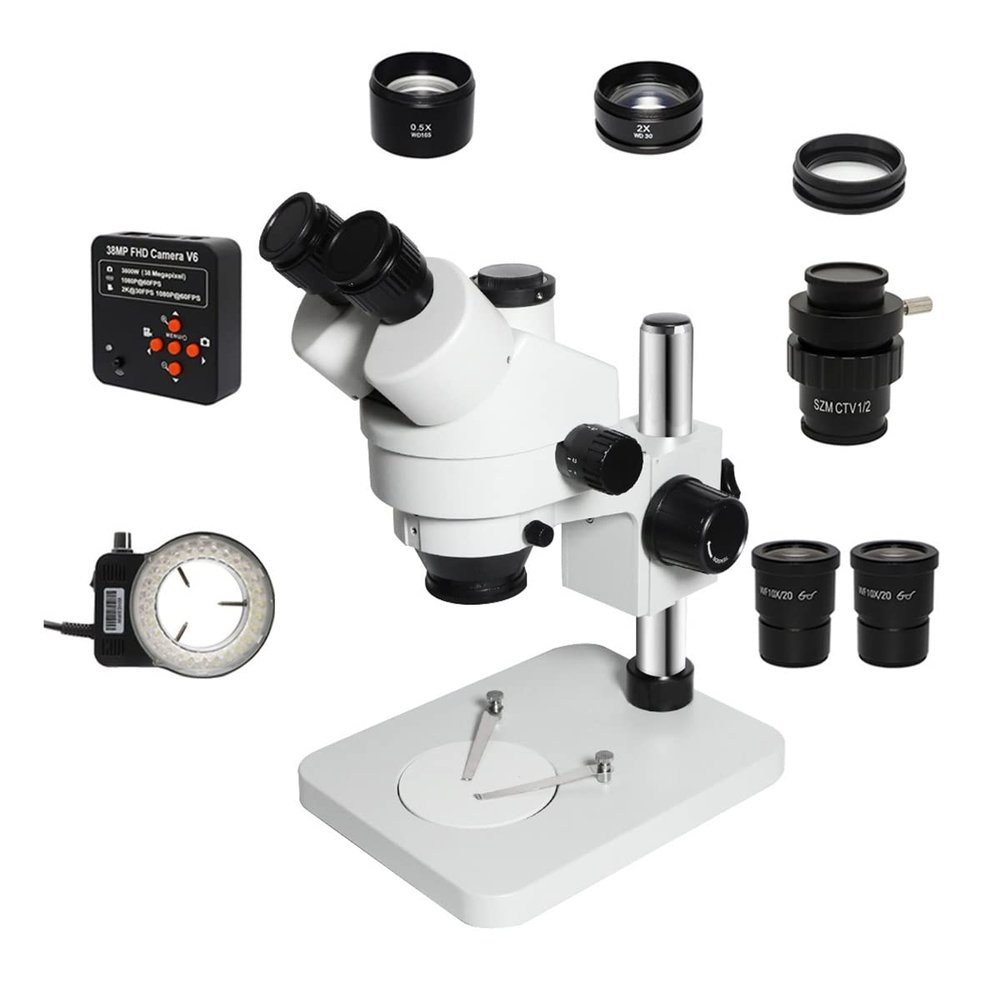

3.5X-90X Trinocular Stereo Zoom Microscope Simul-Focal Industrial Digital Microscope Set for PCB Soldering Repair (Color : 38MP add CTV 0.5X)

Description

• 7X-45X Extremely Large Zoom Magnification Power. Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging; 45 Inclined Trinocular Head with Super Wide-field High-Eyepoint Eyepiecesl 30mm Super Wide-field Eyepieces (see the difference in the above picture).
• Microscope Head: 45 inclined 360 swiveling trinocular simul-focuse head; Eyepiece: 30mm super wide-field high-eyepoint WF10X/20mm; Objective: 3.5-9.0X (Add 0.5X / 2.0X / 1.0X Objective Auxiliary Lens).
• C Mount Lens (option): 0.5X C Mount & SZM CTV 12; 56 LED Ring; Light that offers super widefield optics; Zoom Range 641; Diopter Adjustment 5dp; Interpupillary Distance 2-3/16" - 2-15/16"(55-75mm); Field of View: 2-1/2" (65mm) in diameter; Working Distance: 4" (100mm).

Features:
7X-45X Extremely Large Zoom Magnification Power
Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
Erect Stereo Sharp Images Over a Super Wide-field of View
Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
Crystal Clear Original True Color Images
45 Inclined Trinocular Head with Super Wide-field High-Eyepoint Eyepieces
30mm Super Wide-field Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
4" (100mm) Extremely Large Working Distance
Versatile Boom Stand Covering Large Working Area
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
Able to Place Microscope Head Toward to Any Direction
Precise alignment reduces stress eyepiece for longer viewing time
Original clear glass true color microscope images
30mm Super Wide-field Eyepieces Included
165mm and 30mm working distance auxiliary objective

Specifications:
Microscope Head: 45 inclined 360 swiveling trinocular simul-focuse head
Eyepiece: 30mm super wide-field high-eyepoint WF10X/20mm
Objective: 3.5-9.0X (Add 0.5X / 2.0X / 1.0X Objective Auxiliary Lens)
C Mount Lens (option): 0.5X C Mount & SZM CTV 12
56 LED Ring Light that offers super widefield optics
Zoom Range 641
Diopter Adjustment 5dp
Interpupillary Distance 2-3/16" - 2-15/16"(55-75mm)
Field of View: 2-1/2" (65mm) in diameter
Working Distance: 4" (100mm)

Package List:
1x 7-45X Trinocular stereo microscope head
1 x Pillar Table Stand
1 x Focusing Rack
1 x Pair of Super Widefield 10X20MM Eyepieces
1x 38MP HDMI Camera /VAG Camera (Optional )
1x 2.0X 0.5X 1X Objective Lens
1x 0.5X C Mount Len/ SZM CTV 1/2 Adapter (Optional )
1x 56- LED light Lamp
