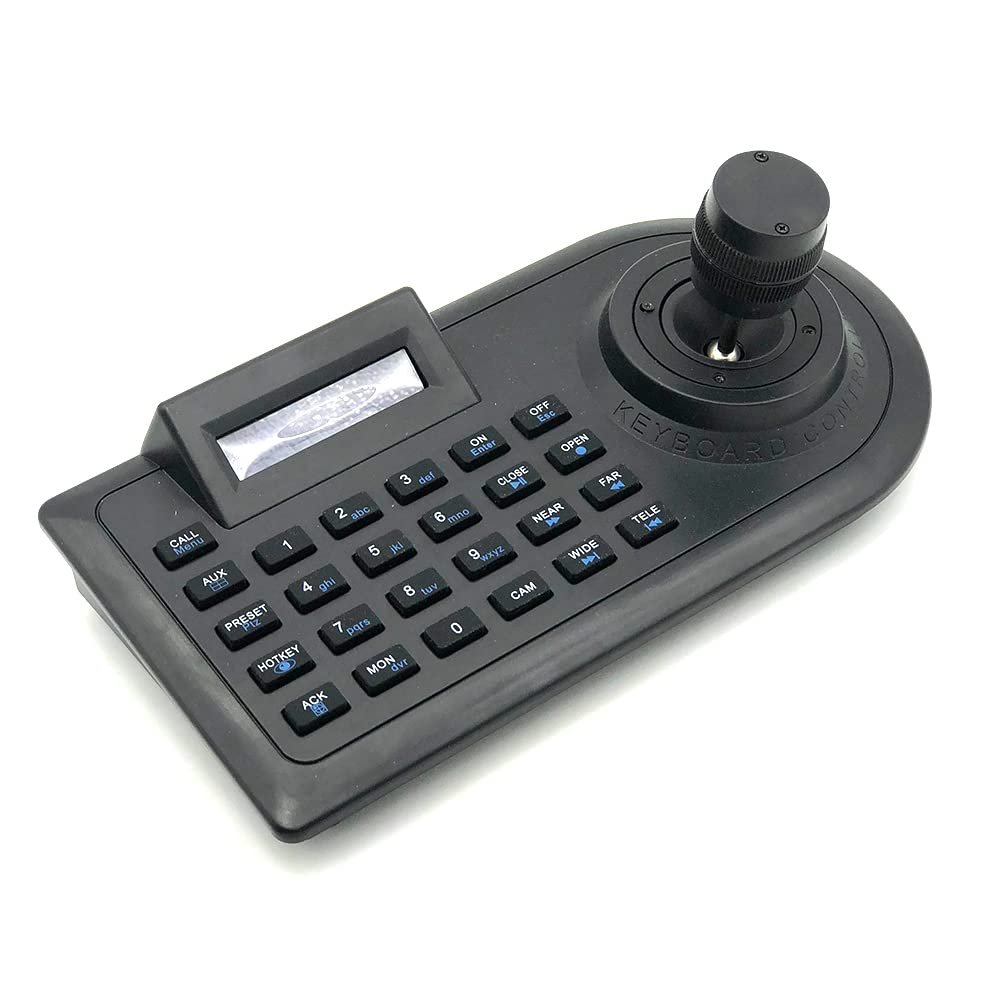

3 Axis 3D CCTV Joystick Keyboard Controller LCD Display RS485 Communication PELCO-D/P for AHD Analog PTZ Speed Dome Security CCTV Camera Control, Black, 3KD-US

Description

• Important: this keyboard controller is for controlling Analog or AHD PTZ cameras, it CAN NOT control network PTZ IP Cameras. 3 Axis 3D CCTV Camera RS485 Controller For Analog AHD High Speed Dome PTZ Camera System Equipment Keyboard Controller Joystick 3KD LCD DISPLAY
• The keyboard is a powerful multi-function operating keyboard the operational matrix switch / control various functions of the system, shell programming matrix system; variety of DVR functions with centralized control; high speed dome and decoder can directly control. Keyboard operation protective function.
• The digital intelligent control keyboard is a supporting product for terminal receivers such as digital hard disk video recorders, high-speed domes and decoders.
• Communication method: point-to-multipoint half-duplex communication;
• Interface standard: RS-485; Baud rate: 1200bps, 2400bps, 4800bps, 9600bps optional;
• Protocol: PELCO-D and PELCO-P two kinds; Maximum communication distance: 1.2KM; Power supply: DC9V-12V;
• Control the number of hard disk video recorders: up to 16; Control the number of dome cameras and decoders: up to 64; Dimensions: 255 x 150 x 120mm, net weight 0.6KG.
• Item Package includes: 1 x CCTV System Multi-function Controlling Keyboard; 1 x DC12V Power adapter (US power plug available) ; 1 x English Manual.

The keyboard is a powerful multi-function operating keyboard the operational matrix switch / control various functions of the system, shell programming matrix system; variety of DVR functions with centralized control; high speed dome and decoder can directly control. Keyboard operation protective function. The digital intelligent control keyboard is a supporting product for terminal receivers such as digital hard disk video recorders, high-speed domes and decoders. The EIA/RS-485 communication interface is used between the control keyboard and the receiver. After the control keyboard is connected to the hard disk video recorder, the function control of the corresponding hard disk video recorder is realized, and up to 16 units of hard disk video recorders can be controlled at the same time. Without driving, a keyboard can control up to 64 pieces of dome cameras and decoders, and the maximum communication distance between the keyboard and the receiver can reach 1.2KM. The control keyboard can be used to conveniently control and set the hard disk video recorder and the variable speed smart dome camera. Important: this keyboard controller is for controlling Analog or AHD PTZ cameras, it CAN NOT control network PTZ IP Cameras. Technical Parameters: 1. Communication method: point-to-multipoint half-duplex communication 2. Interface standard: RS-485 3. Baud rate: 1200bps, 2400bps, 4800bps, 9600bps optional 4. Protocol: PELCO-D and PELCO-P two kinds 5. Maximum communication distance: 1.2KM, 6.Power supply: DC9V-12V 7. Control the number of hard disk video recorders: up to 16 8. Control the number of dome cameras and decoders: up to 64 9. Dimensions: 255 x 150 x 120mm, net weight 0.6KG Item Package includes: 1 x CCTV System Multi-function Controlling Keyboard 1 x DC12V Power adapter (US power plug available) 1 x English Manual
