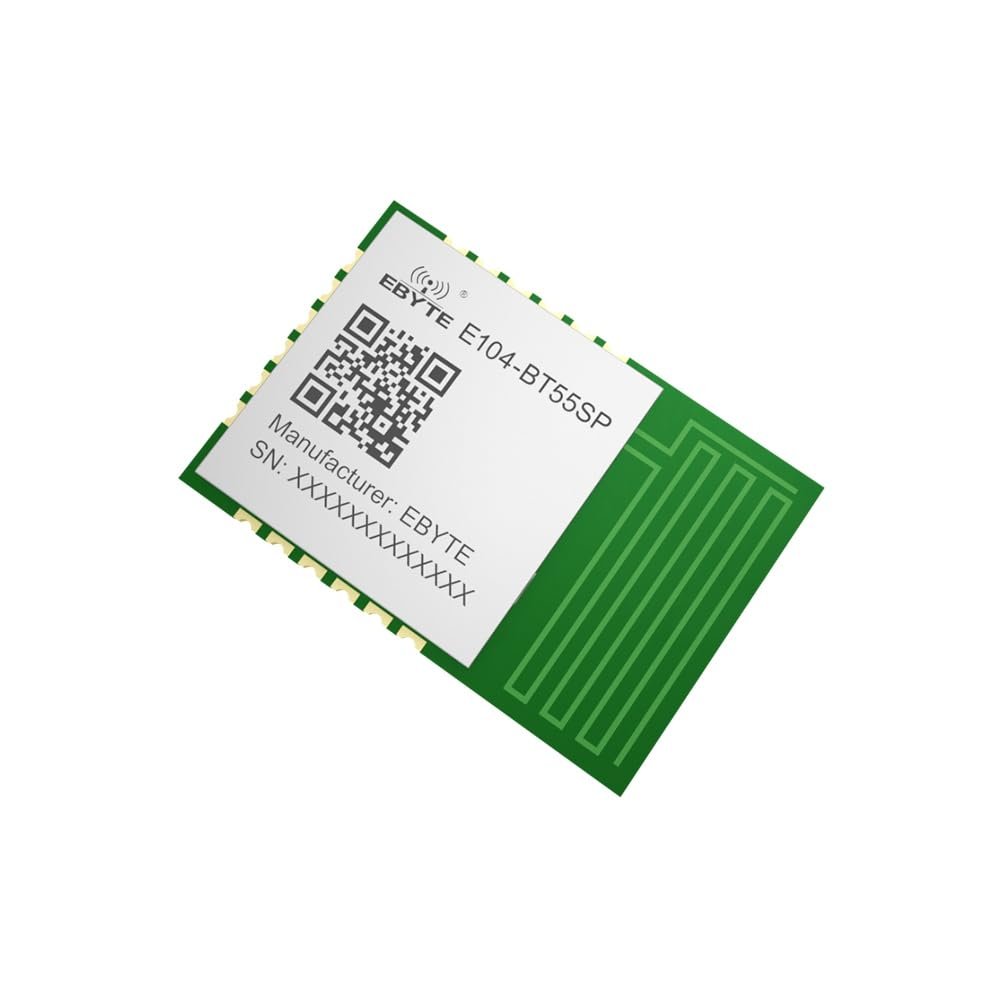

2.4G CC2340 Bluetooth SoC Wireless Module E104-BT55SP BLE5.3 PCB Antenna Zigbee Small Size Low Power

Description

• Application scenarios-SMDrt home and industrial sensors, etc.; Security system, positioning system;Wireless remote control, drone;Wireless game remote control;Healthcare products;Wireless voice, wireless headset;Automotive industry applications. Wearable devices. Asset tracking. Retail EPOS (Electronic Point of Sale);Electronic shelf labels
• Ultra-SMDll size, only 10x14.5mm; Support BLE5.3; The maximum transmit power is 8dbm, with temperature compensation, and the software is multi-level adjustable;Support global license-free ISM 2.4GHz frequency band; Built-in 48MHz clock crystal oscillator
• Built-in high-performance low-power 48 MHz ARM Cortex-M0+ processor; Rich resources, 512k FLASH, 36KB RAM; Support 1.7 - 3.8V power supply, more than 3.3V power supply can ensure the best performance;
• Industrial-grade standard design, support long-term use at -40 - +85 ;On-board PCB antenna, no external antenna required.; Under ideal conditions, the communication distance can reach 170m; Support OTA air upgrade function;
• Integrated temperature and battery monitors; Equipped with AES-128 cryptography hardware accelerator to reduce the code footprint and execution time of encryption operations; Support BLE 5.3, Zigbee, Wi-SUN, SimpleLink TI 15.4-stack, Wireless M-Bus, Sub-1GHz, IEEE 802.15.4, Proprietary systems, Sidewalk, Multiprotocol and other protocols

Chip solution]CC2340R5
[Carrier frequency]2.4GHz
[Transmission power]8dBm
[Communication distance]170m
[Product size]10*14.5mm
[Introduction]E104-BT55SP is a small-sized, low-power Bluetooth module based on Bluetooth protocol version 5.3, working in the 2.4GHz frequency band. The E104-BT55SP module is developed by Ebyte based on the CC2340R5 chip. The Bluetooth module has a 48-MHz Arm Cortex-M0+ processor, an integrated balanced-unbalanced transformer, and UART, I2C, SPI, ADC , DMA, PWM and other rich peripheral resources, and at the same time lead out all IO ports, which is convenient for users to carry out multi-directional development. The maximum supported baud rate is 3Mbps.
