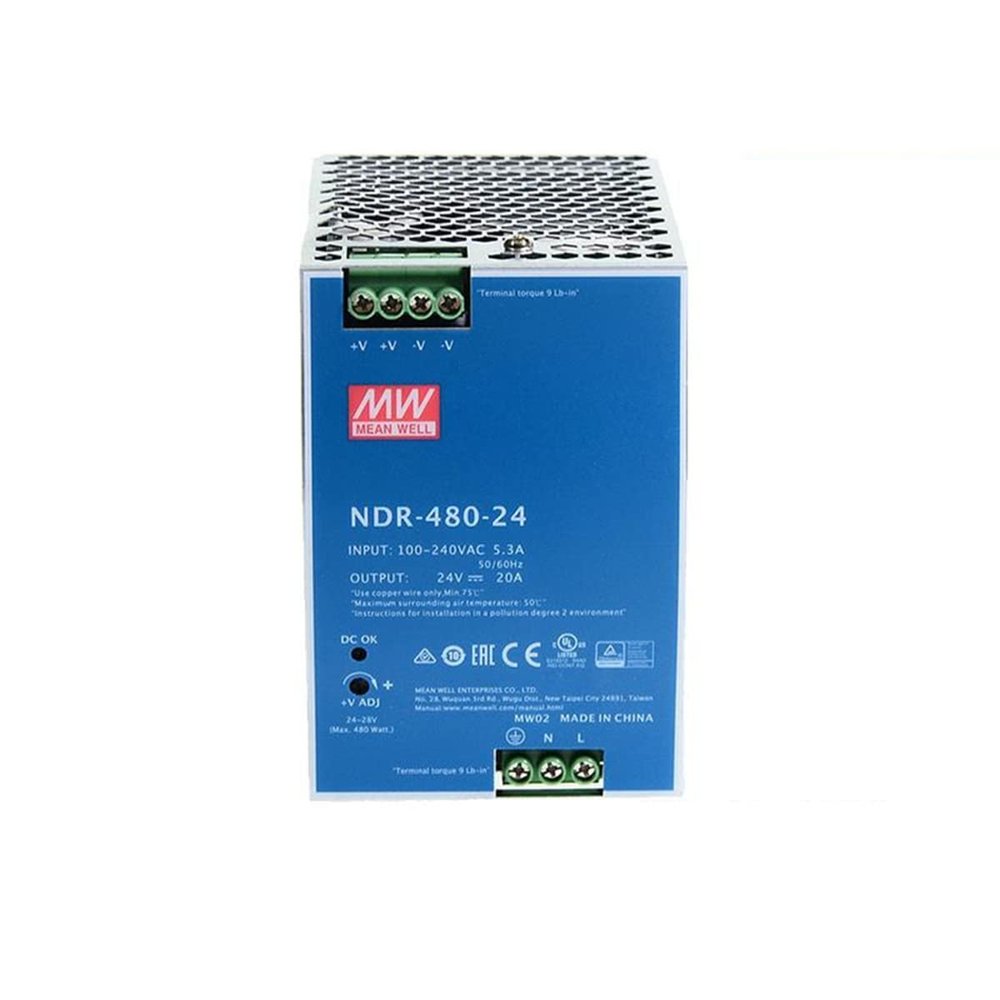

(12PACK) NDR Switch Mode DIN Rail Slim and Economical Power Supply 90 ? 264V Ac Input NDR-480 Series 480W (NDR-480-24)

Description

• Can be instaled on DIN rail TS-35/7.5 or 15
• Short circuit / Overload / Over voltage / Over temperature Protections
• Standards Met RoHS Compliant, TUV EN 60950-1, UL 508
• EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, heavy Industry level, criteria A etc.
• Products High quality High cost-performance complete varieties 24-hour delivery Fast Response ? Technical questions will be replied in 24 hours

Product Details

Mean Well NDR-480 Series Single Output Industrial DIN Rail Power Supply

Economical and slim, the NDR-480 range of power supplies (PSU) can be installed on TS-35/7.5 or TS-35/15 mounting rails and have been designed to allow space saving within cabinets. The entire series conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation.
The entire series can operate between -20C and 60C under air convection.

Features and Benefits

Universal AC input/Full range
Short circuit/Overload/Over voltage/Over temperature protections
Can be installed on DIN Rail TS-35/7.5 or 15
Cooling by free air convection
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Built-in active PFC function (NDR-240 & NDR-480)

Product Application Information

The NDR series PSU by Mean Well is ideal for use in industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus.

Standards If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.
